Newtonian Telescope
Application ID: 19063
Newtonian telescopes, first invented in 1668 by Isaac Netwon, are still used today because of their low cost and simple design.

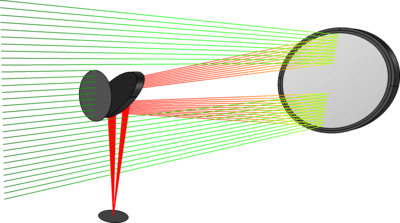

Rays of light propagate from sources located at infinity, into the telescope. The rays reflect off a parabolic mirror, onto a flat mirror, and into the focal plane, forming images of the source objects.
This tutorial model uses the Geometrical Optics interface to trace rays of unpolarized light through a Newtonian telescope system.
This model example illustrates applications of this type that would nominally be built using the following products:
however, additional products may be required to completely define and model it. Furthermore, this example may also be defined and modeled using components from the following product combinations:
The combination of COMSOL® products required to model your application depends on several factors and may include boundary conditions, material properties, physics interfaces, and part libraries. Particular functionality may be common to several products. To determine the right combination of products for your modeling needs, review the Specification Chart and make use of a free evaluation license. The COMSOL Sales and Support teams are available for answering any questions you may have regarding this.
