Solving for a specific Pressure or Force in COMSOL?
Posted Jan 27, 2016, 8:38 p.m. EST Fluid & Heat, Modeling Tools & Definitions, Parameters, Variables, & Functions, Studies & Solvers, Structural Mechanics 0 Replies
Please login with a confirmed email address before reporting spam
I am fairly new to COMSOL and I am trying to simulate two different things:
1. Injection of a liquid through a small tube that connects to a larger tube with a wire inside.
2. Injection of air through a tube to inflate a balloon.

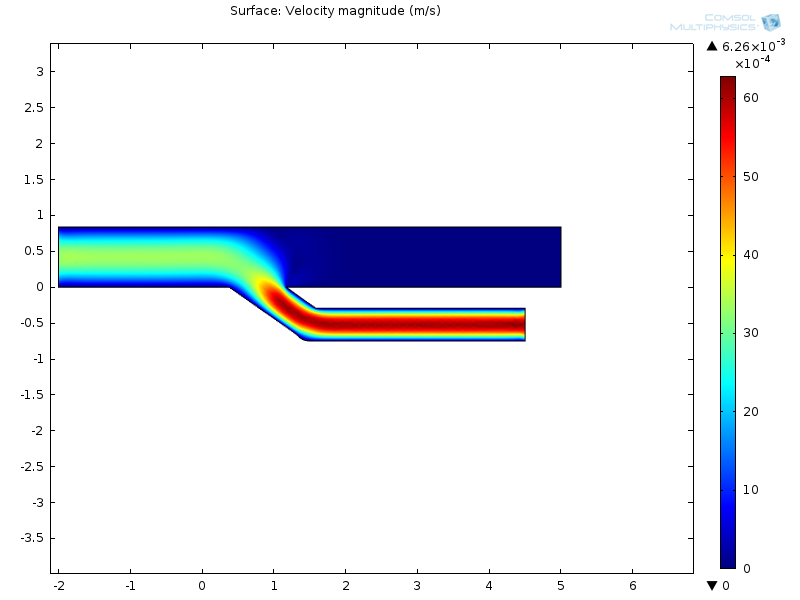

I've been able to somewhat do #1 without the wire. However, my main goal is to solve for the pressure needed for it to actually work. In real life a syringe is used to inject air or liquid through these tubes and I need to figure out the pressure I would need for the specific of my design. I don't think I'm approaching this correctly but I've applied an inlet to the bottom far right tube at 1 Pa and set the top left wall to open boundary. I noticed that no matter what pressure or velocity I use, I get the same outcome. Is it possible for COMSOL to calculate the pressure needed for either of my simulations to be possible?
Also, would it be possible to simulate balloon inflation in COMSOL?
Attachments:
Hello Joseph Baladad
Your Discussion has gone 30 days without a reply. If you still need help with COMSOL and have an on-subscription license, please visit our Support Center for help.
If you do not hold an on-subscription license, you may find an answer in another Discussion or in the Knowledge Base.
