boundary selection in emw

Posted Jan 28, 2016, 4:23 a.m. EST RF & Microwave Engineering Version 5.2 2 Replies

Anurag Hosamani
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

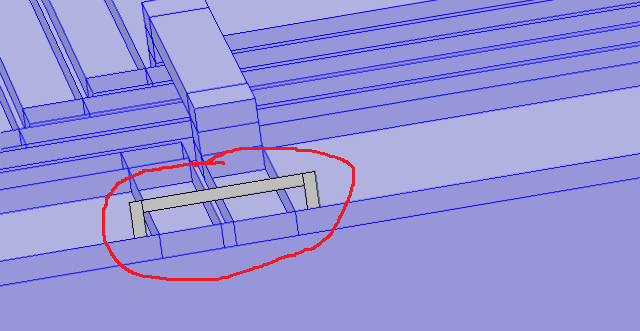

Can any one tell me why the boundaries shown in the attached image are not getting selected in emw physics

I have also attached the .mph file.
2 Replies Last Post Jan 28, 2016, 10:14 p.m. EST
Sergei Yushanov Certified Consultant
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 8 years ago Jan 28, 2016, 3:30 p.m. EST
Anurag,

Your boundaries are outside the computational domain where Maxwell’s wave equation is solved. You need to surround your structure with air domain. After that, you will be able to select port boundaries.

Regards,
Anurag, Your boundaries are outside the computational domain where Maxwell’s wave equation is solved. You need to surround your structure with air domain. After that, you will be able to select port boundaries. Regards,
Anurag Hosamani
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 8 years ago Jan 28, 2016, 10:14 p.m. EST
Thank you,

This works fine.
Thank you, This works fine.
