Plotting a specific relative permittivity

Please login with a confirmed email address before reporting spam

Hi guys!

Im having a little bit problem with the plotting. I want to see how the electric field behavies with different relative permittivities and want to plot that.

Im doing a Electric current and joule heating physics with Time dependet.

I know the expression for the electrical field (ec.normE) in the y-axisl but what do i type for specific relative permittivity in the x-axis ?

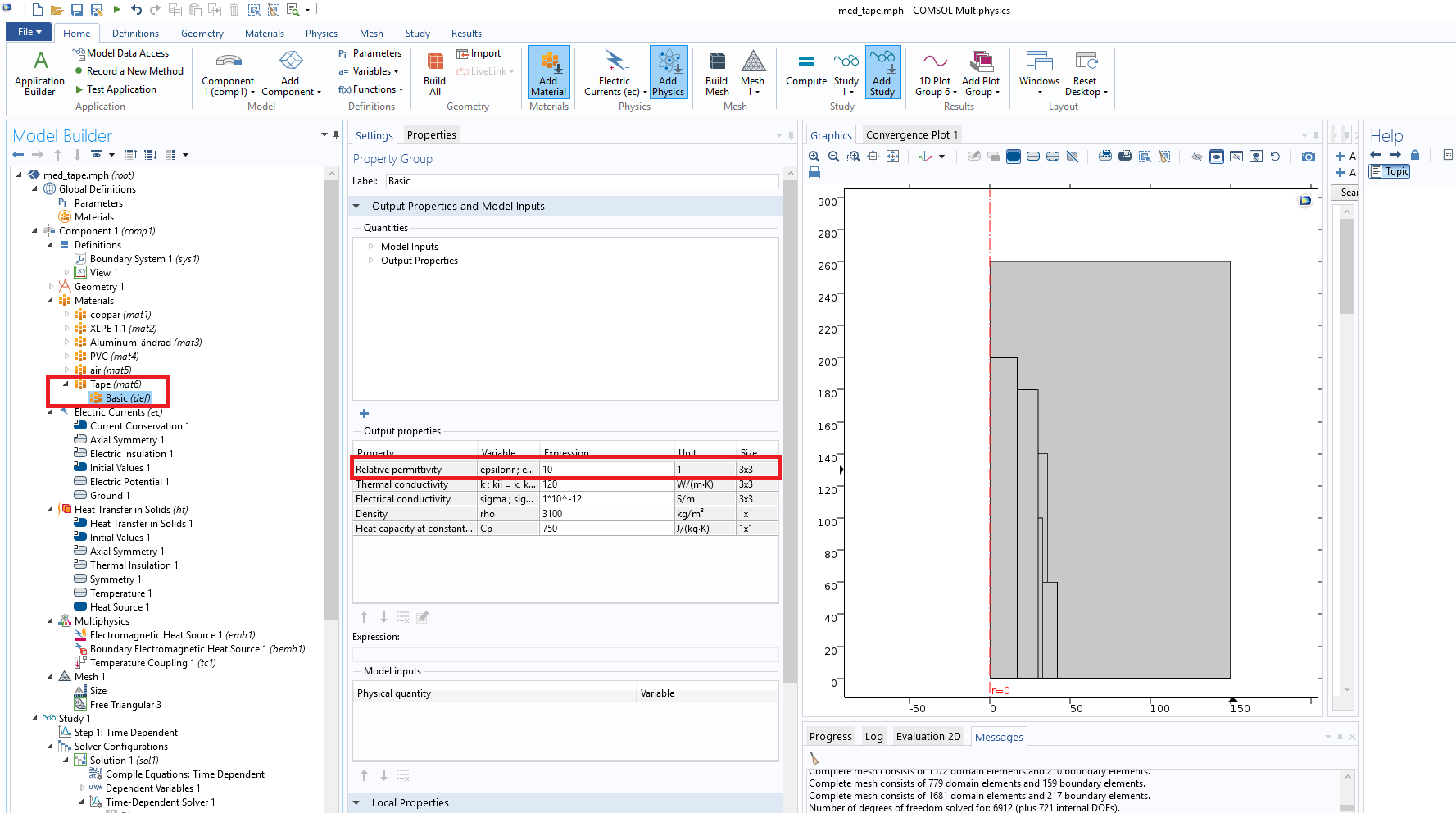

The relative permittivity i want to plot in x-axis for the "tape" is shown in the Picture. What expressions should i type for that?

Plz help.

Thnx!
