How to calculate the bandwidth of a transducer?

Posted Apr 4, 2016, 11:32 a.m. EDT Acoustics & Vibrations Version 5.1 0 Replies

Chunying Wang
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

hello,

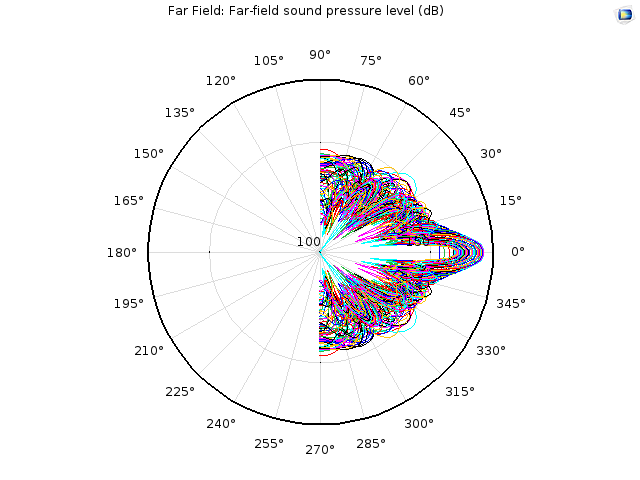

As I know to calculate the bandwidth of a transducer, far-field calculation can be used. However, I don not know how to obtain the values from far-field pressure level polar plot. Using the derived values to pick the maximum values or something else? Thank you all!
0 Replies Last Post Apr 4, 2016, 11:32 a.m. EDT
COMSOL Moderator

Hello Chunying Wang

Your Discussion has gone 30 days without a reply. If you still need help with COMSOL and have an on-subscription license, please visit our Support Center for help.

If you do not hold an on-subscription license, you may find an answer in another Discussion or in the Knowledge Base.
