export a graph from comsol to matlab

Posted Apr 26, 2016, 8:20 a.m. EDT Version 5.2 1 Reply

Rahmoune Wissam
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

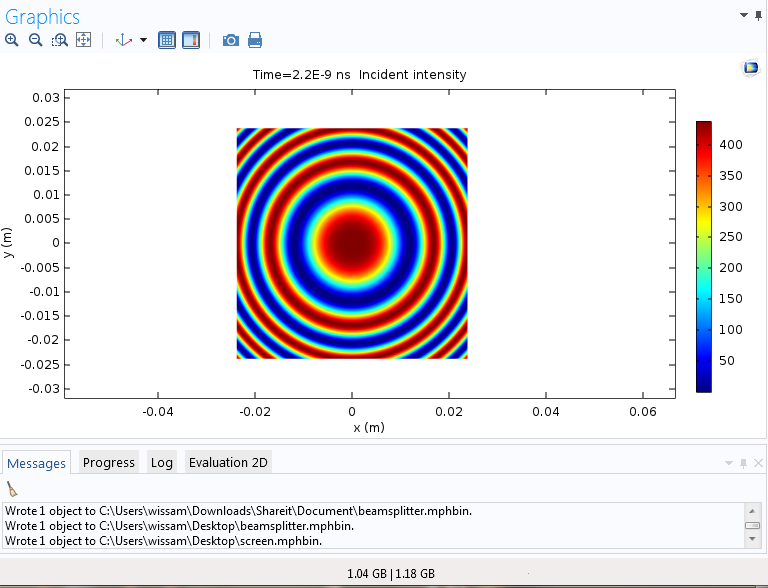

hi ..i am working on michelson interferometer ...i have a 2d plot group of the intensity captured by the detector (see img )..i didn't find a way to read its values from that graph and i would like to export that plot to matlab....is that possible and please if it is show me how !!!

thank you
wissam
1 Reply Last Post Apr 26, 2016, 10:02 a.m. EDT
Mathieu
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 9 years ago Apr 26, 2016, 10:02 a.m. EDT
Hello,

There is certainly a simpler way but you can export data from your graphs (not from the group of graph but from each graph of the group) by doing a right click. Below your result menu you have a node "Export" where you can obtain txt file from your data. Then you just have to import it in matlab.

Regards
Hello, There is certainly a simpler way but you can export data from your graphs (not from the group of graph but from each graph of the group) by doing a right click. Below your result menu you have a node "Export" where you can obtain txt file from your data. Then you just have to import it in matlab. Regards
