Comsol asking for Dynamic viscosity
Posted Mar 12, 2017, 7:59 a.m. EDT Fluid & Heat, Heat Transfer & Phase Change, Materials Version 5.2 2 Replies
Please login with a confirmed email address before reporting spam
Hello,

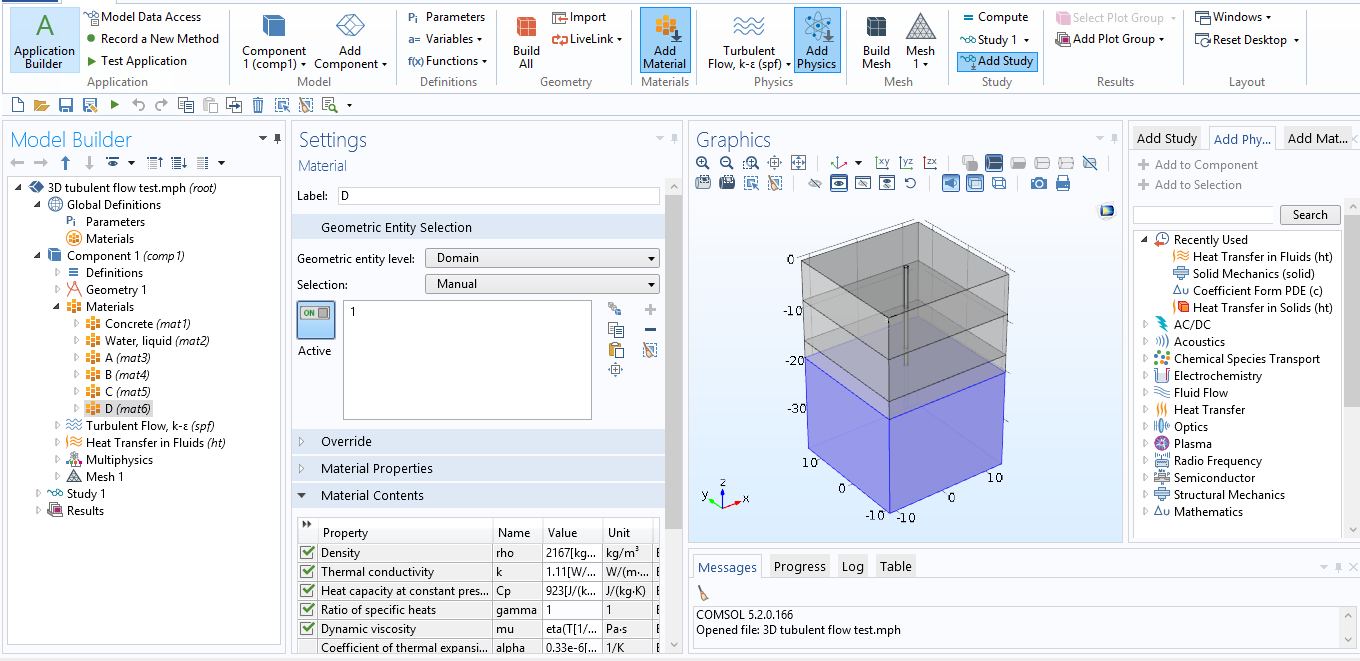

I am pretty new for COMSOL. I am trying to build a simple model of a heat exchanger foundation. The model is part of solid and fluid, I, therefore choose Turbulent Flow and Heat Transfer in Fluids. When assigning material properties I use the blank material function to create for soil but it asks me to fill in dynamic viscosity. I do not know the value to fill to soil. I have attached the model photo I am working on.
Thanks in advance for your help.
Theary
I am pretty new for COMSOL. I am trying to build a simple model of a heat exchanger foundation. The model is part of solid and fluid, I, therefore choose Turbulent Flow and Heat Transfer in Fluids. When assigning material properties I use the blank material function to create for soil but it asks me to fill in dynamic viscosity. I do not know the value to fill to soil. I have attached the model photo I am working on.
Thanks in advance for your help.
Theary
Attachments:
2 Replies Last Post Mar 13, 2017, 11:52 a.m. EDT
Please login with a confirmed email address before reporting spam
Posted:
7 years ago
Hello Lay,
Given the high aspect ratio in your geometry, using a pipe formulation may make sense from the perspective of memory usage and computational time.
Check out these blogs an the links from there for an introduction to the approach I am referring to:
www.comsol.com/blogs/modeling-geothermal-processes-comsol-software/
www.comsol.com/blogs/simulating-injection-mold-cooling/
Best,
Jeff
PS: You will also find blogs and tutorials on full 3D conjugate heat transfer on the website, see e.g. www.comsol.com/blogs/?s=conjugate+heat
Given the high aspect ratio in your geometry, using a pipe formulation may make sense from the perspective of memory usage and computational time.
Check out these blogs an the links from there for an introduction to the approach I am referring to:
www.comsol.com/blogs/modeling-geothermal-processes-comsol-software/
www.comsol.com/blogs/simulating-injection-mold-cooling/
Best,
Jeff
PS: You will also find blogs and tutorials on full 3D conjugate heat transfer on the website, see e.g. www.comsol.com/blogs/?s=conjugate+heat
Please login with a confirmed email address before reporting spam
Posted:
7 years ago
Thank you very much for your help
