Two rollers and plate contact

Posted Apr 27, 2017, 2:11 p.m. EDT Structural Mechanics 2 Replies

Rokas Petriukas
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

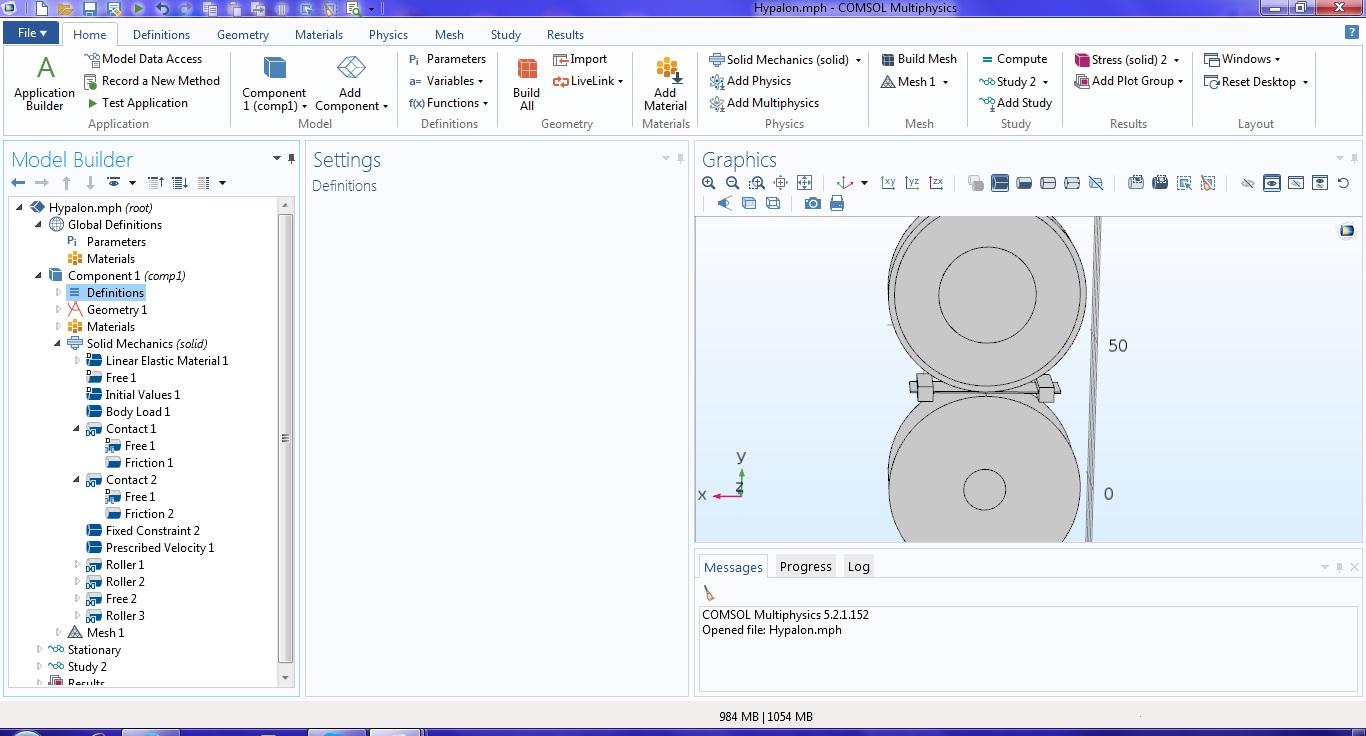

Hello everyone, i have been working on this for few months, maybe you can help me to solve this problem. I have two rollers and a plate between them, plate velocity 0.02m/s, and body load, from upper axis varies from 0 to 100 N. Using friction i need to calculate deformation of the plate along axis. I could not attach my model cos of the size error, so i will attach picture.

Attachments:

2 Replies Last Post Apr 28, 2017, 1:03 a.m. EDT
Jack Guo
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 8 years ago Apr 27, 2017, 10:49 p.m. EDT
Dear sir,

Do you have build the geometry? I also do not know how to define the velocity ,we can have a talk about it .
Dear sir, Do you have build the geometry? I also do not know how to define the velocity ,we can have a talk about it .
Nicholas Goldring Certified Consultant
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 8 years ago Apr 28, 2017, 1:03 a.m. EDT

Hello everyone, i have been working on this for few months, maybe you can help me to solve this problem. I have two rollers and a plate between them, plate velocity 0.02m/s, and body load, from upper axis varies from 0 to 100 N. Using friction i need to calculate deformation of the plate along axis. I could not attach my model cos of the size error, so i will attach picture.

What is your question exactly? Are you unable to plot the deformation that you want or are you unsure of how to set up the problem? Your model file will be small enough to upload if you clear the solutions and then save it.


--
Nick
[QUOTE] Hello everyone, i have been working on this for few months, maybe you can help me to solve this problem. I have two rollers and a plate between them, plate velocity 0.02m/s, and body load, from upper axis varies from 0 to 100 N. Using friction i need to calculate deformation of the plate along axis. I could not attach my model cos of the size error, so i will attach picture. [/QUOTE] What is your question exactly? Are you unable to plot the deformation that you want or are you unsure of how to set up the problem? Your model file will be small enough to upload if you clear the solutions and then save it. -- Nick
