Sorting my eigenfrequency

Posted Nov 13, 2017, 7:32 p.m. EST General, Parameters, Variables, & Functions, Results & Visualization 0 Replies

Qianli Chen
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

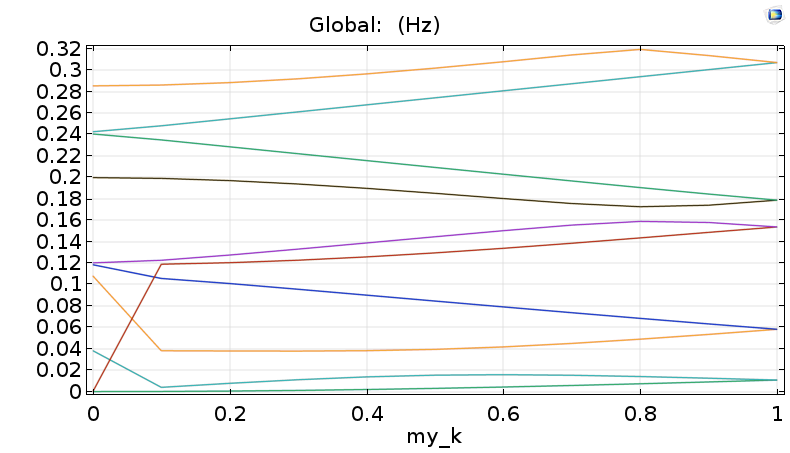

Hi all, I have a very quick question. I am doing Bloch wave analysis to a unit cell of elastic wave. I have successfully computed the dispersion relation. Basically what I am doing is I do a parameter sweep of k which give a constraint to the system and compute the corresponding eigenvalue of the constraned system. There is only a small problem here. For k=0, the eigenvalue is not from small to large order which makes my dispersion line cross each other. I have attached the dispersion relation. So, is there a way to sort my eigenvalues in order?

Thanks in advance.

Attachments:

0 Replies Last Post Nov 13, 2017, 7:32 p.m. EST
