Create a circular 2D Cut Line

Posted Jan 2, 2018, 8:19 a.m. EST Fluid & Heat, Computational Fluid Dynamics (CFD) Version 5.2 1 Reply

Daniel Arnemann
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Hi everyone,

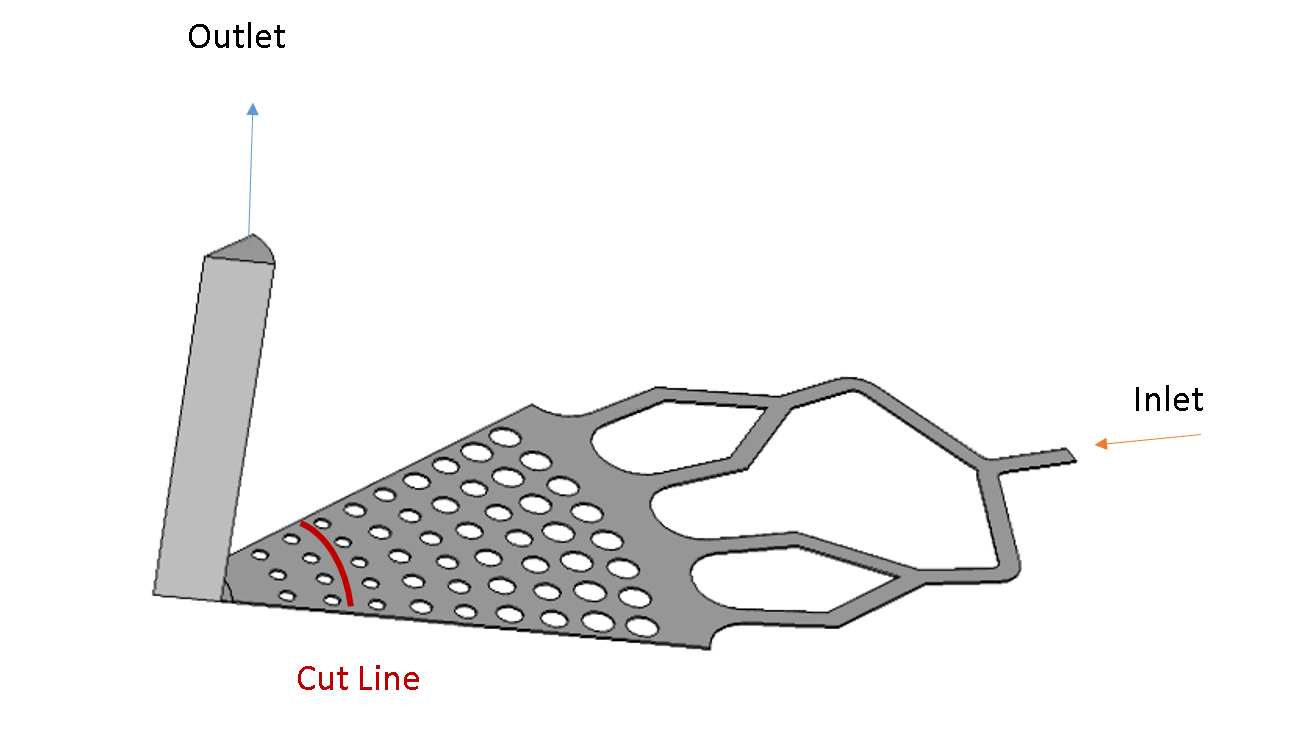

in my component there is a fluid flowing from the inlet to the outlet, as you can see in the attachment. How is it possible to create the red cut line to measure the velocity of the fluid over the angle at a certain radius?

Thanks for the help.

Attachments:

1 Reply Last Post Jan 2, 2018, 8:36 a.m. EST
Jeff Hiller COMSOL Employee

Please login with a confirmed email address before reporting spam

Posted: 7 years ago Jan 2, 2018, 8:36 a.m. EST

Hello Daniel,

You can create a Parameterized Curve 3D dataset for this purpose.

Best,

Jeff

-------------------
Jeff Hiller
Hello Daniel, You can create a Parameterized Curve 3D dataset for this purpose. Best, Jeff
