Unexpected envelop around a sine wave

Posted Jan 16, 2018, 10:34 a.m. EST Parameters, Variables, & Functions Version 5.3a 2 Replies

Aishvarya kumar Jain
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Hello Everyone,

I am trying to build a sine wave through analytical functions, but when I am increasing the frequency, I see an unexpected envelop around the signal.

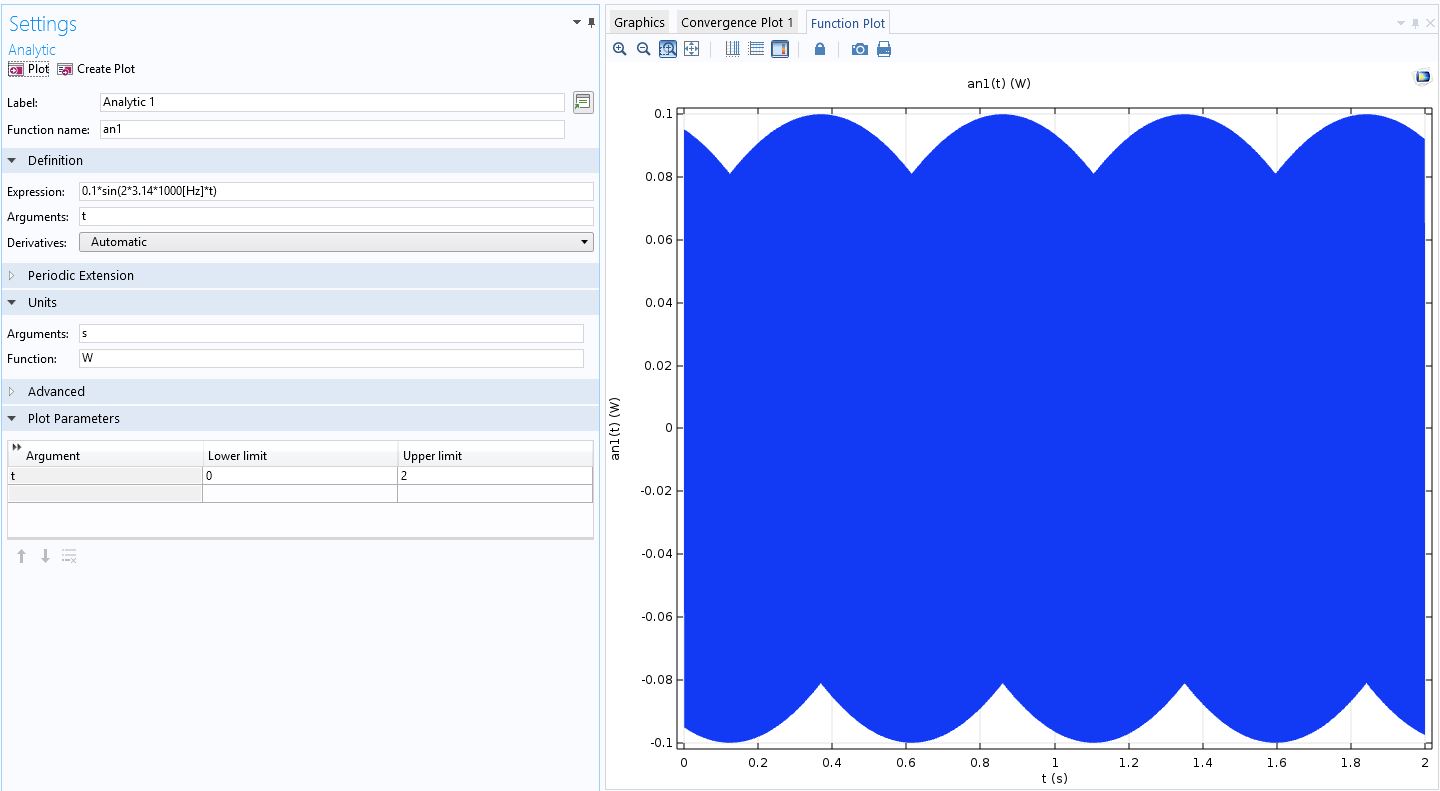

If I use following formulae, then I get the signal as shown in attachment 1: sin(2x3.14x1000[Hz]xt)

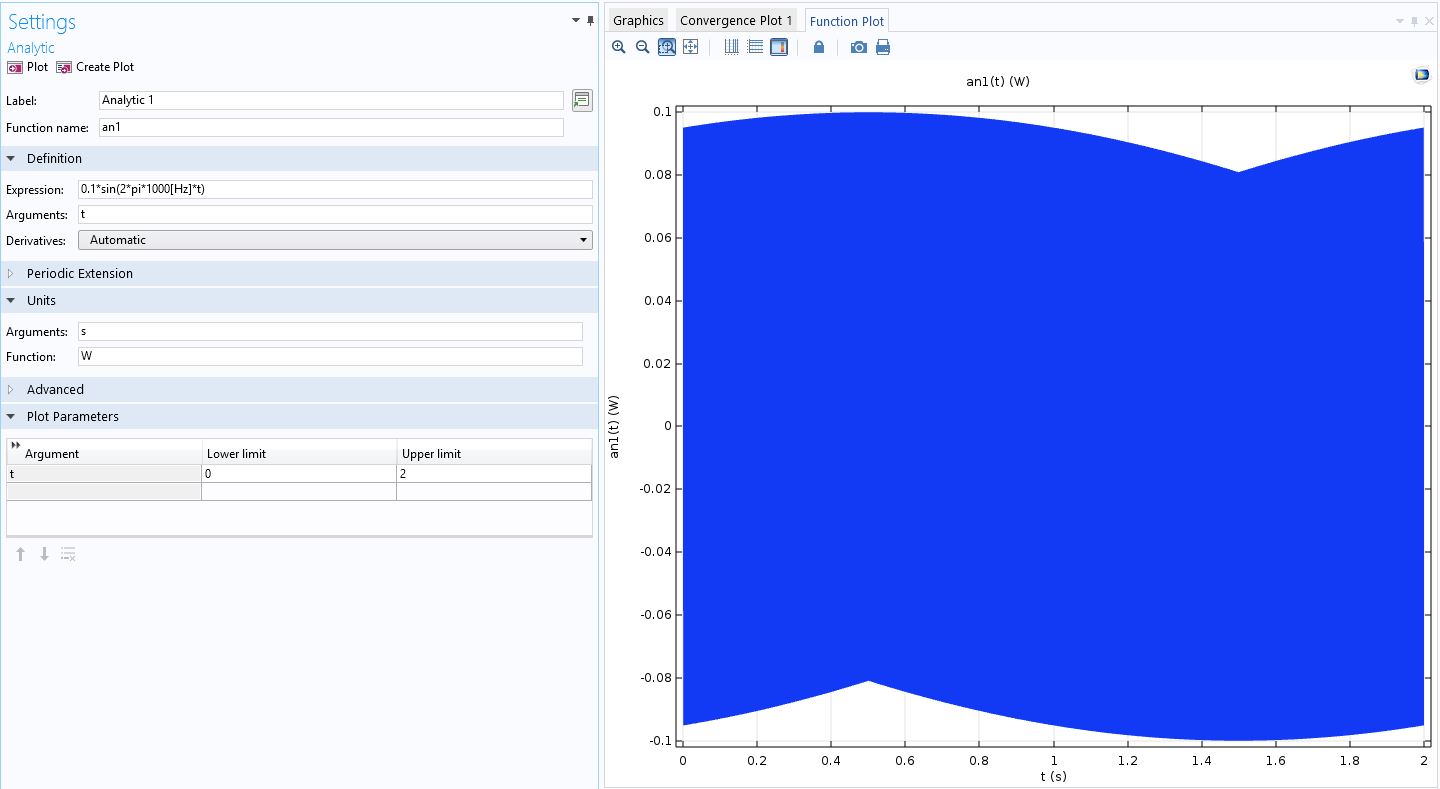

And if I use following, what I get is shown in attachment 2: sin(2xpix1000[Hz]xt)

Can anyone explain me why I am getting such behaviour.

Thank you

2 Replies Last Post Jan 23, 2018, 9:24 a.m. EST
Edgar J. Kaiser Certified Consultant
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 7 years ago Jan 16, 2018, 4:31 p.m. EST

This is a visualization artifact. The plot is undersampling the curve.

-------------------
Edgar J. Kaiser
emPhys Physical Technology
www.emphys.com
This is a visualization artifact. The plot is undersampling the curve.
Aishvarya kumar Jain
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 7 years ago Jan 23, 2018, 9:24 a.m. EST

Thanks. Didnt know even such thing can also happen.

Regards, Aishvarya

Thanks. Didnt know even such thing can also happen. Regards, Aishvarya
