Permanent magnet orientation

Posted May 10, 2018, 10:13 a.m. EDT Low-Frequency Electromagnetics Version 5.3 2 Replies

João Oliveira
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

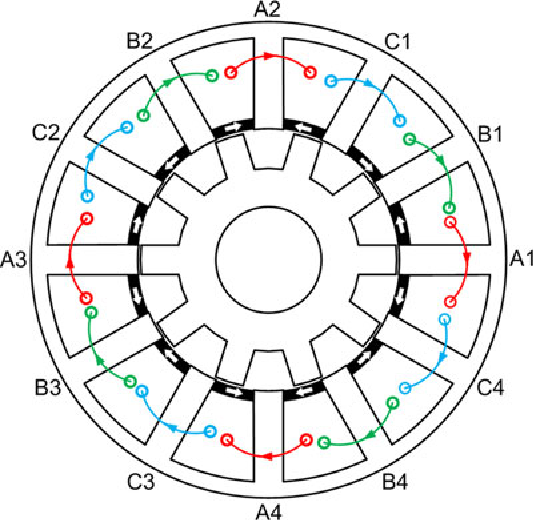

Hello, I'm modeling a Permanent Magnet Machine, and I want to change the orientation of the magnets to have the same orientation as in the figure that is attached, anyone could help me?

Regards, João Oliveira

Attachments:

2 Replies Last Post May 11, 2018, 4:48 a.m. EDT
Nirmal Paudel Tribhuvan University/Electrical Engineering
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 7 years ago May 10, 2018, 4:25 p.m. EDT

Hi,

The magnetization can be done using the cylindrical co-ordinate system as done in this Magnetic Gear model. See the blog post and associated model files. https://www.comsol.com/blogs/modeling-magnetic-gears-in-comsol-multiphysics/

Best Regards, Nirmal

Hi, The magnetization can be done using the cylindrical co-ordinate system as done in this Magnetic Gear model. See the blog post and associated model files. https://www.comsol.com/blogs/modeling-magnetic-gears-in-comsol-multiphysics/ Best Regards, Nirmal
João Oliveira
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 7 years ago May 11, 2018, 4:48 a.m. EDT

Hi,

The magnetization can be done using the cylindrical co-ordinate system as done in this Magnetic Gear model. See the blog post and associated model files. https://www.comsol.com/blogs/modeling-magnetic-gears-in-comsol-multiphysics/

Best Regards, Nirmal

Hi Nirmal, Thanks for your reply, now I got it.

Best regards João Oliveira

>Hi, > >The magnetization can be done using the cylindrical co-ordinate system as done in this Magnetic Gear model. >See the blog post and associated model files. >https://www.comsol.com/blogs/modeling-magnetic-gears-in-comsol-multiphysics/ > >Best Regards, >Nirmal Hi Nirmal, Thanks for your reply, now I got it. Best regards João Oliveira
