Challenge in initialization of hole in 3d

Posted Jul 24, 2018, 1:56 p.m. EDT General Version 5.3 0 Replies

Samuel Ayinde
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

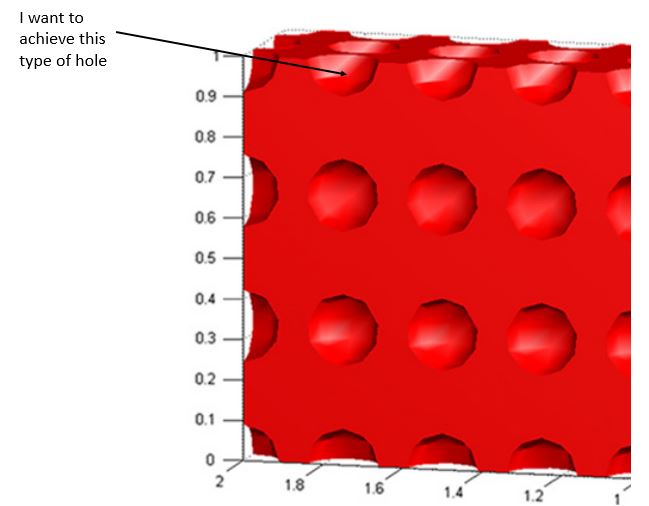

I want to initialize a hole in three-dimensional, that is, an hemispherical hole as in "my goal.jpg". But the result I am getting is not what I am expecting, even though my equation is correct (capture_sphere). See "3D Plot Group 9" in mph model. I tried using flc2hs to scale it, yet it did not work. See "3D Plot Group 7" in the model. Please, what can I do? Please, find the attached Comsol model and pictures. Thank you so much.

0 Replies Last Post Jul 24, 2018, 1:56 p.m. EDT
