Piezo's Electric Field at Fixed-Free Interface

Posted Jun 24, 2011, 4:37 p.m. EDT Mesh, Structural Mechanics Version 3.5a 0 Replies

Michael Marana
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Hello,

I am modeling a rectangular (2D) piezo. The left half of the rectangle is fixed, and the right half of the rectangle is free (essentially a cantilever beam, showing the fixed half as well as the free half). The right edge of the rectangle has a force going in the positive y direction.

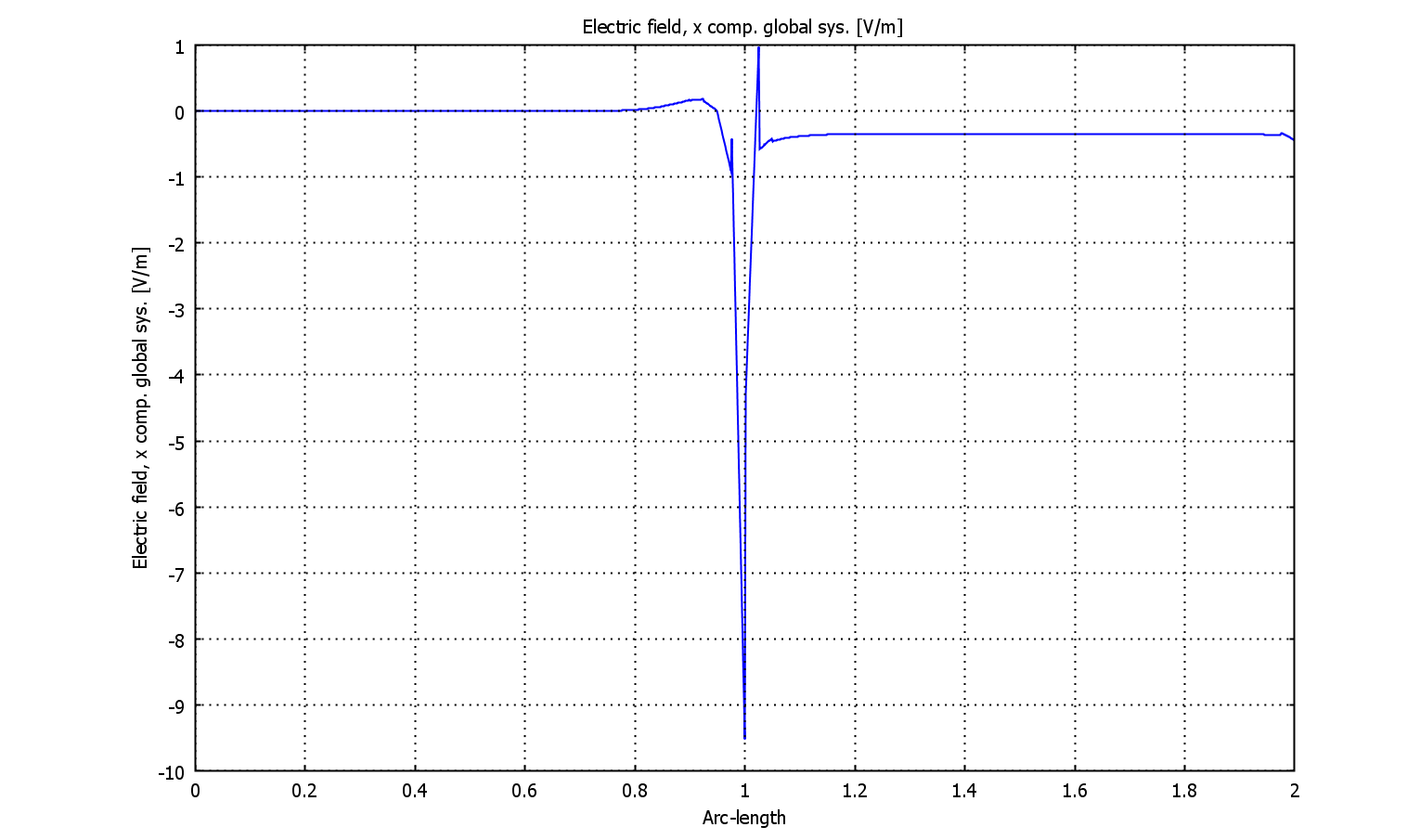

When I look at the line cross-plot of the x-direction electric field along the cantilever, there is a very prominent jump at the fixed-free interface, no matter how fine my mesh gets.

How can I resolve this problem?

Thanks,
Michael
