"Failed to form solid object" Warning

Posted Sep 26, 2018, 9:01 p.m. EDT General, Simulation Apps, Mesh Version 5.2a 1 Reply

Tiara Travis
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

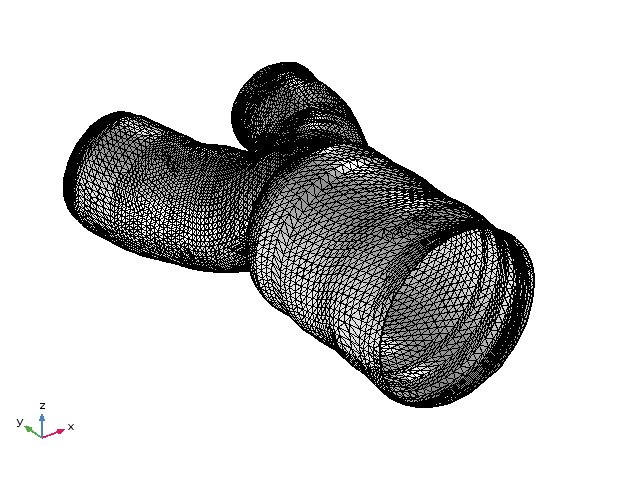

Why does COMSOL give me this warning when I import geometry from Solidworks? I have the necessary licences and I am able to import, but cannot import an STL file as a solid, only a mesh. What must I do differently to import my geometry as a solid not a mesh?

Attachments:

1 Reply Last Post Sep 27, 2018, 9:15 a.m. EDT
Jeff Hiller COMSOL Employee

Please login with a confirmed email address before reporting spam

Posted: 6 years ago Sep 27, 2018, 9:15 a.m. EDT
Updated: 6 years ago Sep 27, 2018, 9:19 a.m. EDT

Hello Tiara,

My post in this thread applies here.

This blog post gives some more background on when stl format is suitable and when it should be avoided .

Jeff

-------------------
Jeff Hiller
Hello Tiara, My post in [this thread](https://www.comsol.com/forum/thread/109012/dimension-problem-when-importing-geometry-from-solidworks?last=2016-04-07T23:07:39Z) applies here. [This blog post](https://www.comsol.com/blogs/improved-functionality-and-tips-for-importing-stl-and-nastran-files/) gives some more background on when stl format is suitable and when it should be avoided . Jeff

Note that while COMSOL employees may participate in the discussion forum, COMSOL® software users who are on-subscription should submit their questions via the Support Center for a more comprehensive response from the Technical Support team.
