Half ring magnet diametrically magnetization simulation issue

Please login with a confirmed email address before reporting spam

Hello all,

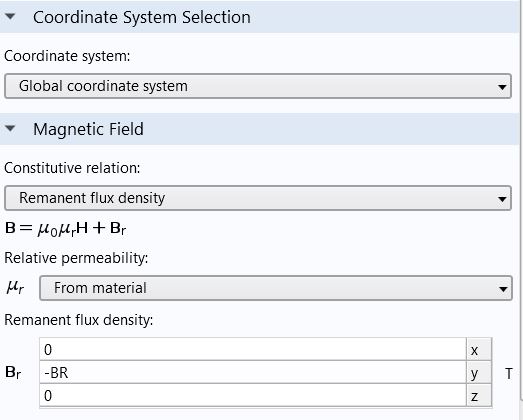

Currently I am working on half ring magnet with diametrically magnetization simulation, the magnetization is attached as below.

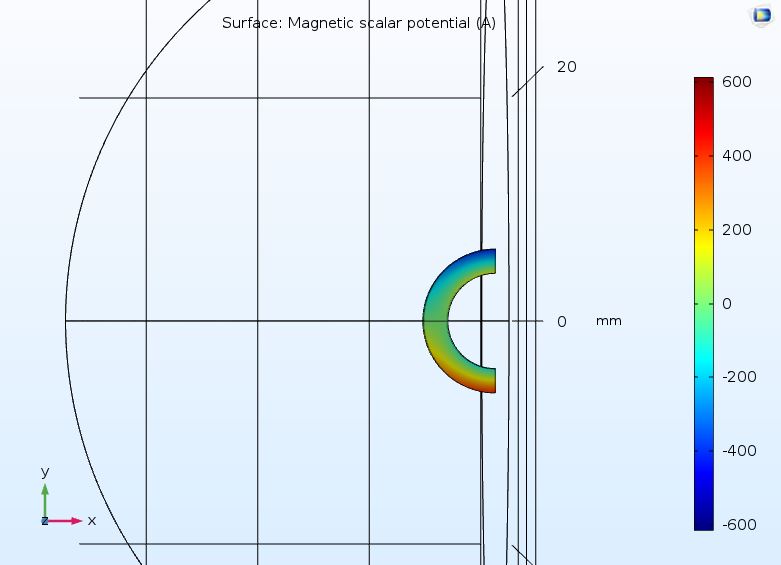

However, I have the problem to magnetize the magnet to get the expected result, the magnetization direction and result are also attached. I am thinking to use formula to handle the direction, but after many trial still not work.

May I ask if there is any possible solution for this? Thanks in advance.

BR,



2 Replies Last Post Oct 4, 2018, 1:08 a.m. EDT
Edgar J. Kaiser Certified Consultant

Please login with a confirmed email address before reporting spam

Posted: 6 years ago Oct 3, 2018, 10:21 a.m. EDT

Andrea,

it looks like you want a horse-shoe like magnet. In this case it is better to define a cylindrical coordinate system and define the magnetization in the phi-direction.

Cheers Edgar

-------------------
Edgar J. Kaiser
emPhys Physical Technology
www.emphys.com
Andrea, it looks like you want a horse-shoe like magnet. In this case it is better to define a cylindrical coordinate system and define the magnetization in the phi-direction. Cheers Edgar

Please login with a confirmed email address before reporting spam

Posted: 6 years ago Oct 4, 2018, 1:08 a.m. EDT

Andrea,

it looks like you want a horse-shoe like magnet. In this case it is better to define a cylindrical coordinate system and define the magnetization in the phi-direction.

Cheers Edgar

Thanks Edgar, it is solved.

>Andrea, > >it looks like you want a horse-shoe like magnet. In this case it is better to define a cylindrical coordinate system and define the magnetization in the phi-direction. > >Cheers >Edgar Thanks Edgar, it is solved.
