Boundary mode analysis of asymmetric waveguide

Posted Oct 8, 2018, 1:55 p.m. EDT 0 Replies

Shaiveya Sharma
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Hello I am working on Silicon based polarisation rotator which is basically a coupler.The structure is asymmetric waveguide comprise of silicon slot and strip waveguide.Now i am facing difficulty in defining boundary mode conditions and defining ports i should use to give input (2 or 3).

Thanks in advance.

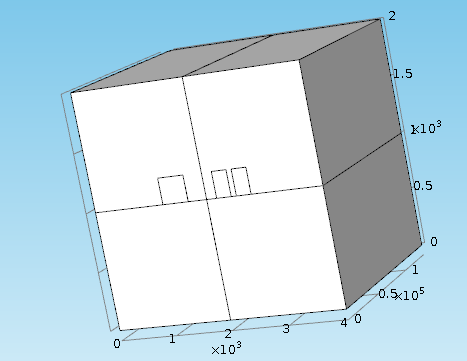

Attachments:

0 Replies Last Post Oct 8, 2018, 1:55 p.m. EDT
COMSOL Moderator

Hello Shaiveya Sharma

Your Discussion has gone 30 days without a reply. If you still need help with COMSOL and have an on-subscription license, please visit our Support Center for help.

If you do not hold an on-subscription license, you may find an answer in another Discussion or in the Knowledge Base.

Note that while COMSOL employees may participate in the discussion forum, COMSOL® software users who are on-subscription should submit their questions via the Support Center for a more comprehensive response from the Technical Support team.
