Fillet for three line vertex

Posted Nov 30, 2018, 1:06 p.m. EST Geometry Version 5.3a 1 Reply

Kajsa Hedin
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

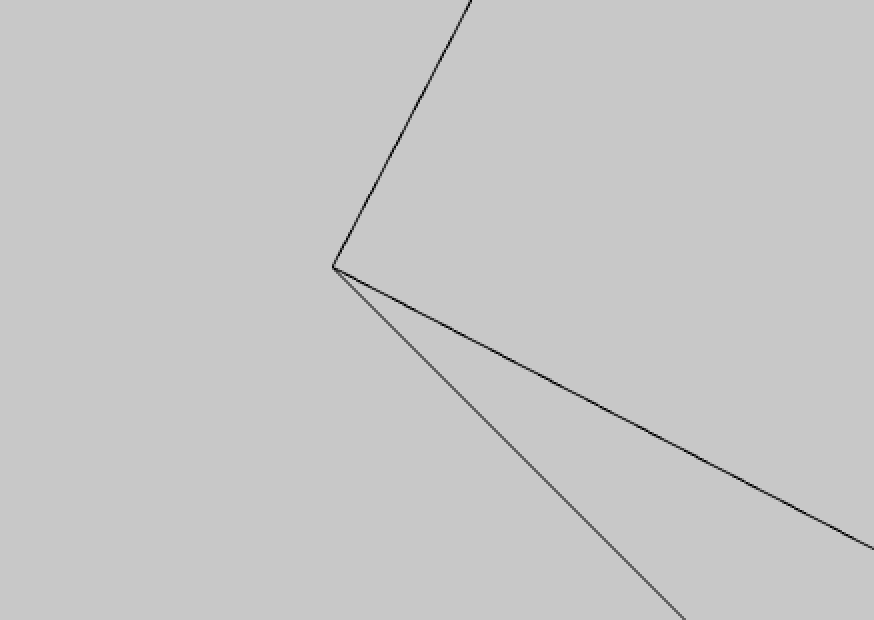

Is there anyway to create a fillet for a corner that connects three lines in COMSOL Multiphysics 5.3a for a 2D model?

1 Reply Last Post Dec 1, 2018, 8:49 a.m. EST
Edgar J. Kaiser Certified Consultant
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 6 years ago Dec 1, 2018, 8:49 a.m. EST

Hi,

take a look at the attached example. Build the geometry sequence step by step to see the idea. I am not sure if this is what you want. There may be other ways to achieve that.

Cheers Edgar

-------------------
Edgar J. Kaiser
emPhys Physical Technology
www.emphys.com
Hi, take a look at the attached example. Build the geometry sequence step by step to see the idea. I am not sure if this is what you want. There may be other ways to achieve that. Cheers Edgar

Attachments:
