Setting heat inflow for internal boundary

Posted Feb 23, 2019, 9:06 a.m. EST Computational Fluid Dynamics (CFD), Heat Transfer, Porous Media Flow Version 5.4 0 Replies

V.S.K. Seerala
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

I have a geometry where a fluid flowing in an interior domain cools the larger (parent, porous medium) domain. My question is how to set one of the boundaries of interior domain to have heat inflow and outflow? Comsol only allows me to set interior boundaries as insulated or open. Is there a way to simulate what I want?

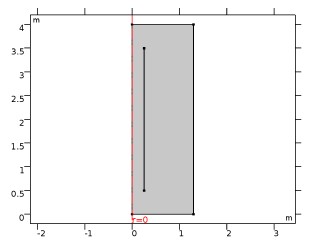

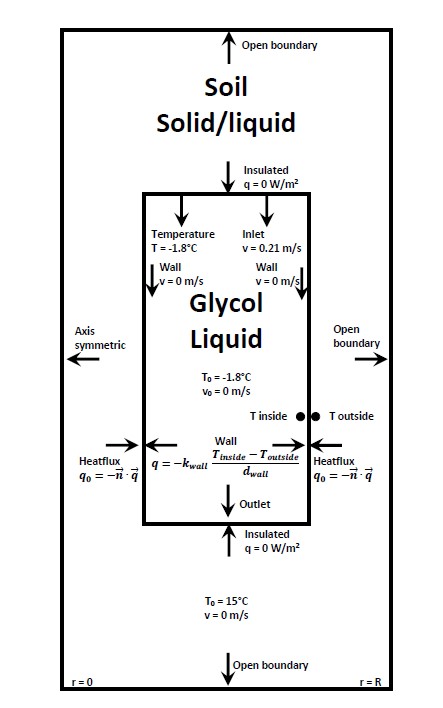

Explanation of attached images: The small slit sized domain in 'geometry.png' is where the fluid flows. I've also attached an expanded view with BCs as 'conditions.png'.

Thanks :)
