Drawing 3D geometry

Posted Oct 20, 2011, 3:29 p.m. EDT 1 Reply

Cindy Duong
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Hello,

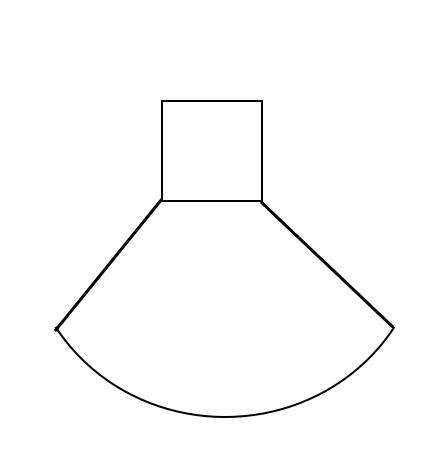

I am trying to draw a 3D chamber coming from a rectangular channel. The 3D chamber would be an extrusion of an arc of a circle as in the picture file shown below. I am kind of clueless to even know how to start drawing the arc in a separate work plane from the rectangular channel. Any help is appreciated.

Attachments:

1 Reply Last Post Oct 21, 2011, 2:30 a.m. EDT
Ivar KJELBERG COMSOL Multiphysics(r) fan, retired, former "Senior Expert" at CSEM SA (CH)
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 1 decade ago Oct 21, 2011, 2:30 a.m. EDT
Hi

I would try to draw a circle and a triangle/trapeze and intersect both, then add the square, and extrude, eitheras one or in two steps, all depends what you are after

--
Good luck
Ivar
Hi I would try to draw a circle and a triangle/trapeze and intersect both, then add the square, and extrude, eitheras one or in two steps, all depends what you are after -- Good luck Ivar
