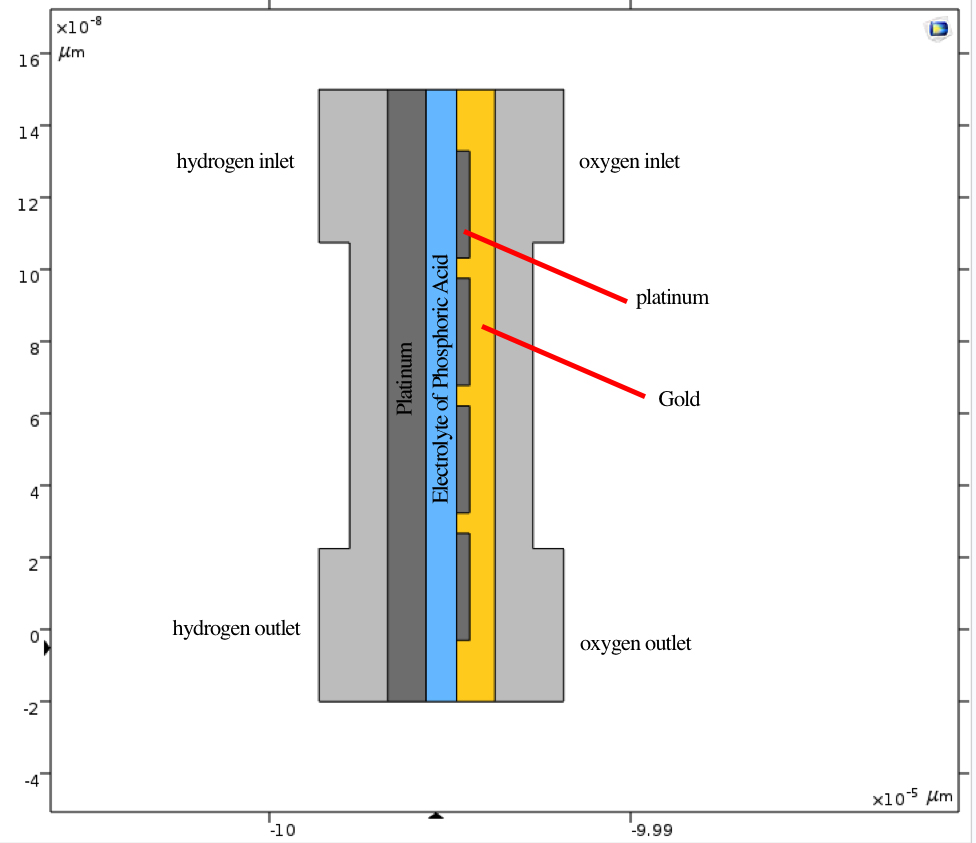

2D model of a Phosphoric Acid Fuel Cell

Please login with a confirmed email address before reporting spam

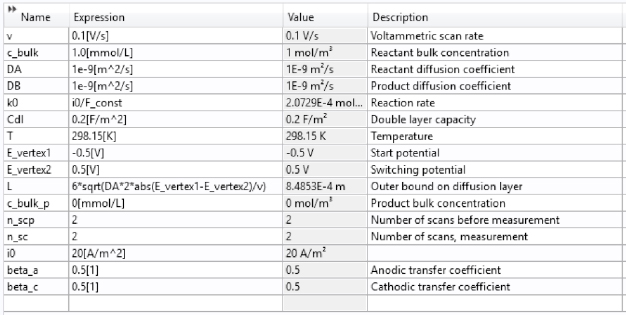

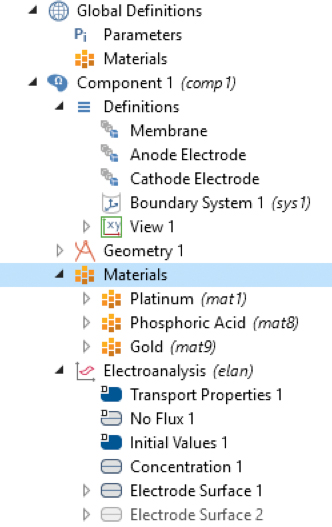

I'm trying to make a 2D model of a Phosphoric Acid Fuel Cell. For the physics part I'm using electroanalysis by adding cyclic voltammetry for the study. I've used the same parameters as the one in COMSOL application gallery (see attachment). I would like to know if i'm defining the components correctly in the electroanalysis or not? (Check the PDF file please). And i would like to know if there's anything i need to add or fix?

Thank you



0 Replies Last Post Apr 19, 2019, 3:00 a.m. EDT
COMSOL Moderator

Hello Firas Alessa

Your Discussion has gone 30 days without a reply. If you still need help with COMSOL and have an on-subscription license, please visit our Support Center for help.

If you do not hold an on-subscription license, you may find an answer in another Discussion or in the Knowledge Base.

Note that while COMSOL employees may participate in the discussion forum, COMSOL® software users who are on-subscription should submit their questions via the Support Center for a more comprehensive response from the Technical Support team.
