The moving mesh in Rotating Machinery Magnetic
Posted Jun 11, 2019, 11:59 p.m. EDT Low-Frequency Electromagnetics, General, Mesh Version 5.4 0 Replies
Please login with a confirmed email address before reporting spam

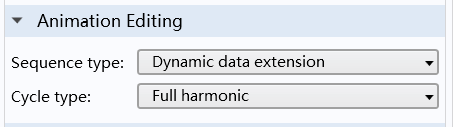

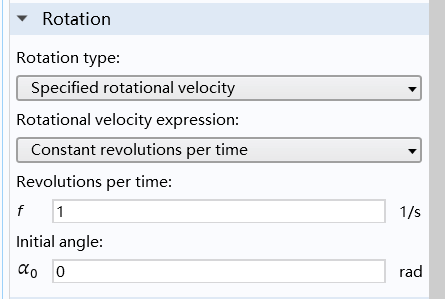

I am simulating a permanent magnet motor in rmm in version 5.4. I defined rotor with moving mesh. I give it a constant revolution per time. When I export the animation with stored solutions (sequence type), the moving mesh is separated automatically but in dynamic data extension will not appear this phenomenon. I compared it with the library the generator_2D, the 2D file will not appear this phenomenon. If I defined the model in a wrong way? Have you ever met this problem? Hope you can share your idea or solutions to this problem.
Attachments:
Hello Joey Mai
Your Discussion has gone 30 days without a reply. If you still need help with COMSOL and have an on-subscription license, please visit our Support Center for help.
If you do not hold an on-subscription license, you may find an answer in another Discussion or in the Knowledge Base.
