Meshing help
Posted Jun 27, 2019, 8:37 p.m. EDT Low-Frequency Electromagnetics, CAD Import & LiveLink™ Products for CAD, Mesh Version 5.4 0 Replies
Please login with a confirmed email address before reporting spam

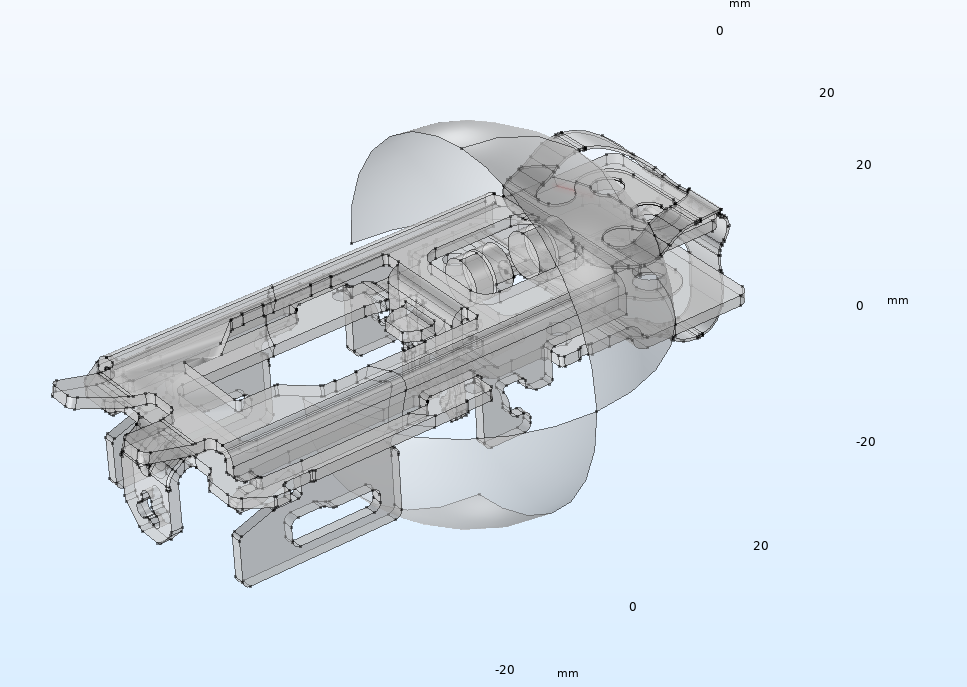

I am new to Comsol. I got a basic training and some goto documenation. However I got a customer cad drawing and would like to do magnetic simulations. Painstakingly the meshing seems to be difficult to do. I can not figure out on how to get it working. I am removing edges after edges, preformed 2 repairs but still find myself with multiple ten's of errors and warnings.
Anybody want to give it a look?
