solid mechanics weird results

Posted Jul 15, 2019, 7:14 a.m. EDT Piezoelectric Devices, Results & Visualization, Structural Mechanics Version 5.4 0 Replies

Aashish Sah
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Hi,

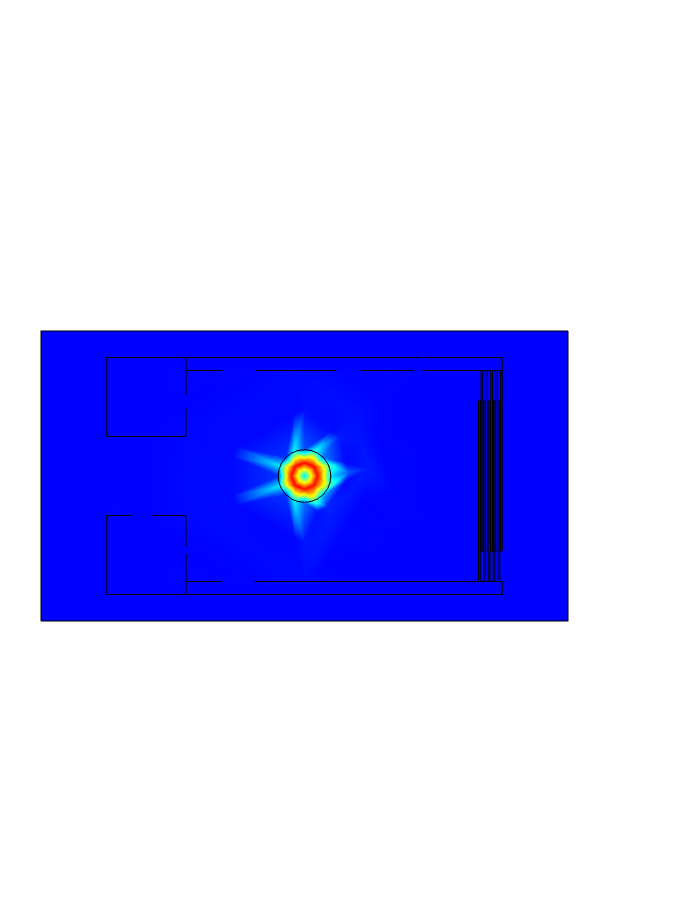

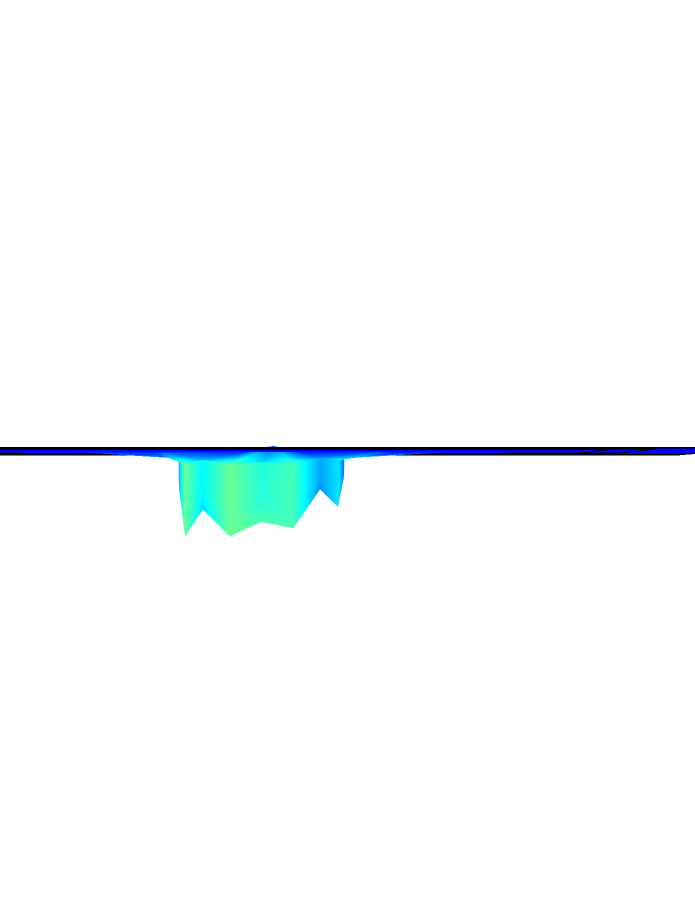

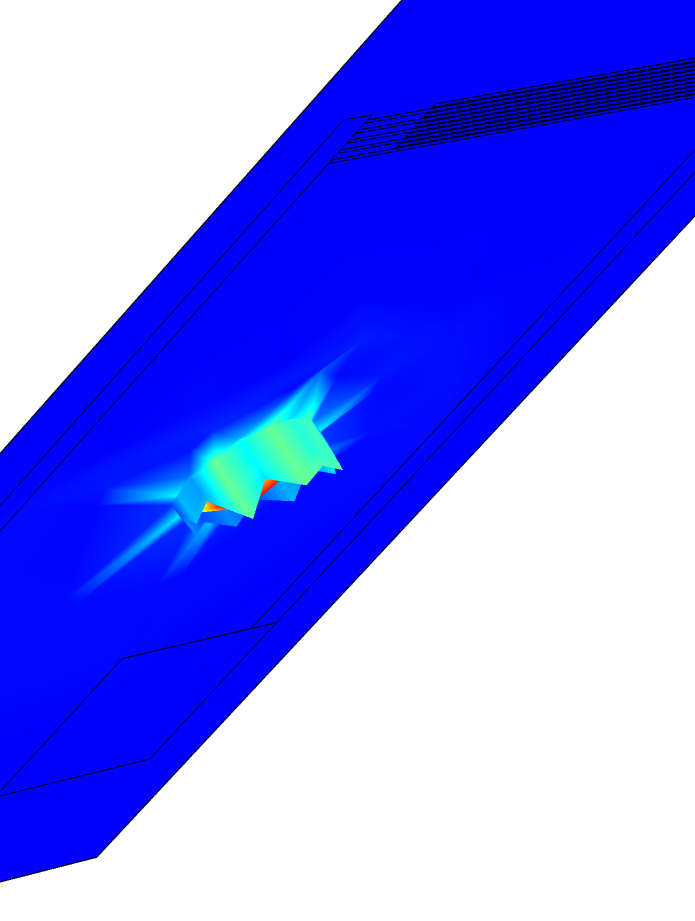

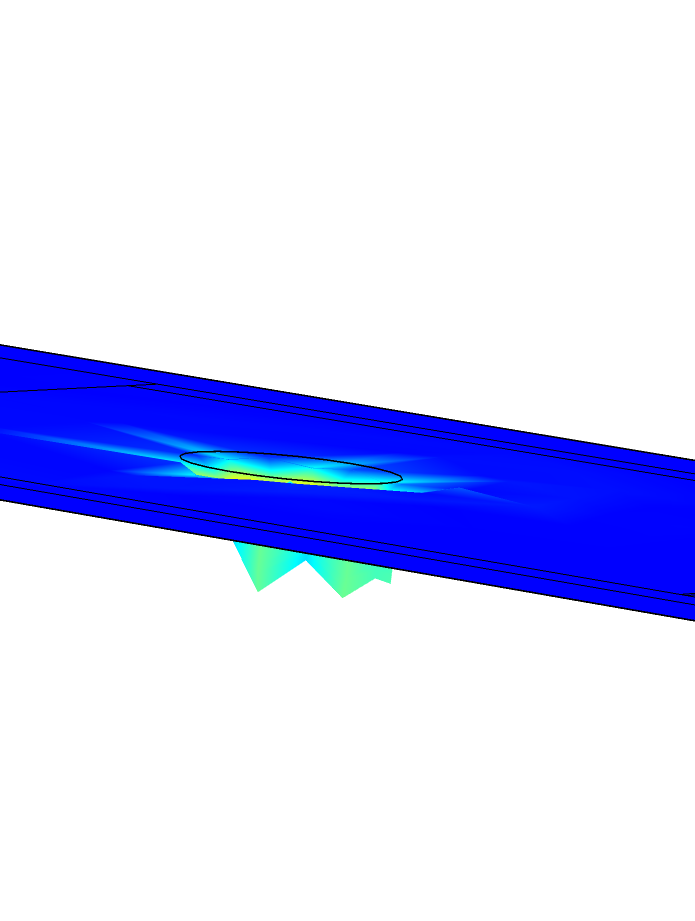

I am simulating a piezoelectric device. I am experiencing difficulty in understanding the stress result of the structure. The bottom layer has zero displacement boundary condition, however I see a bulge as seen in the image on the bottom layer. Could anyone help me understand what it is?
