analyse results, getting data to make graphs

Posted Nov 25, 2011, 10:29 a.m. EST Results & Visualization Version 4.2 1 Reply

Ricardo Canudas
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam


Hallo , I need help on how to visualize and analyse results, i took the example from the model library + ACDC module + electrical components + Helmholtz coil

When I look at the results I get the magnetic field generated by this coils, my question is , how do I get the data from only one line going through the Y axis, starting point (0,-1,0) ending point (0,1,0)

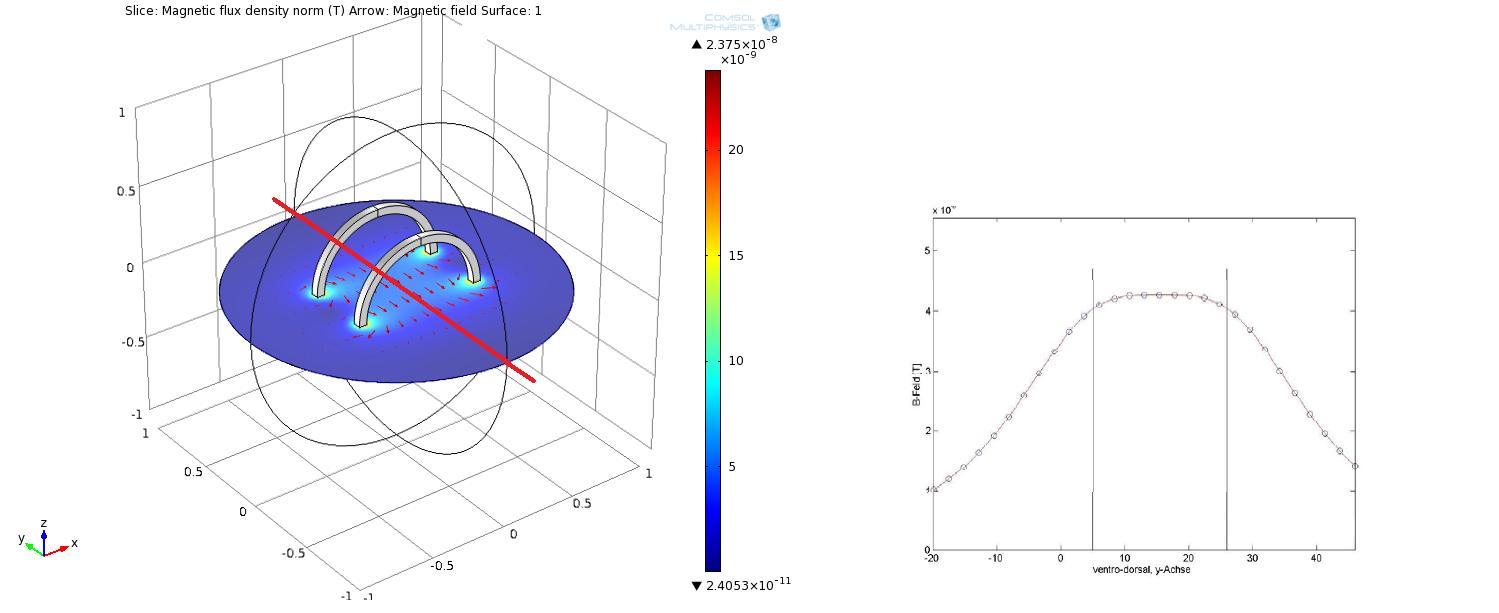

I attatch a picture of the graph that I want to get , can comsol generate such a graph or at least give me the data on each point of the line so i can make the graph on my own..

Thanks for your help =)

Attachments:

1 Reply Last Post Nov 26, 2011, 3:41 a.m. EST
Ivar KJELBERG COMSOL Multiphysics(r) fan, retired, former "Senior Expert" at CSEM SA (CH)
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 1 decade ago Nov 26, 2011, 3:41 a.m. EST
Hi Ricardo

Try a right click on the Result Data Set node (get used to try a right click on all nodes, even when you believe you know them as new items appear depending on how you define the previous ones !) and try a cut line, or an edge etc. Then redirect you plot (line plot probably) onto this "data set"

--
Good luck
Ivar
Hi Ricardo Try a right click on the Result Data Set node (get used to try a right click on all nodes, even when you believe you know them as new items appear depending on how you define the previous ones !) and try a cut line, or an edge etc. Then redirect you plot (line plot probably) onto this "data set" -- Good luck Ivar
