Display some different results in the same graphic in Application Builder

Posted Nov 27, 2019, 7:01 a.m. EST Simulation Apps, COMSOL Server Version 5.4 1 Reply

XV Lou
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

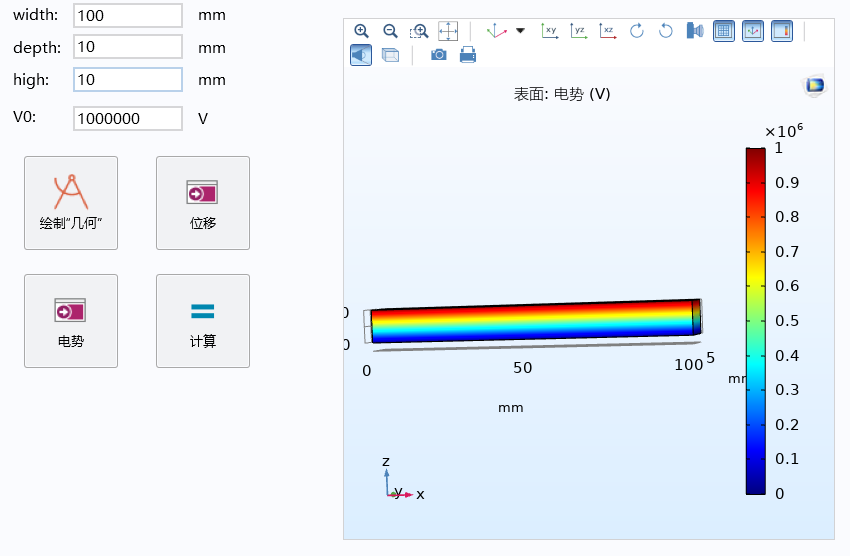

Dear I want to make some different results displayed in one graohic in Application Builder,just like the enclosure shows,yesterday i got it,but i don't know why?or! it's just comsol's bug?

1 Reply Last Post Nov 27, 2019, 9:20 a.m. EST
Mark Harradine
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 5 years ago Nov 27, 2019, 9:20 a.m. EST
Updated: 5 years ago Nov 27, 2019, 9:34 a.m. EST

You can use the following code in a local method for the button:

useGraphics(model.result("pg2"), "frmRes/gfxLine");

instead of pg2 use the appropriate plot name for the desired plot in your application.

The frmRes/gfxLine bit tells the application to use the graphics item called gfxLine on the form named frmRes.

It looks like your graphics are on the same form as the plot buttons, so you shouldn't need the frmRes/ bit.

Each button can use similar code, pointing towards the same graphics object.

You can use the following code in a local method for the button: ***useGraphics(model.result("pg2"), "frmRes/gfxLine");*** instead of ***pg2*** use the appropriate plot name for the desired plot in your application. The ***frmRes/gfxLine*** bit tells the application to use the graphics item called ***gfxLine*** on the form named ***frmRes***. It looks like your graphics are on the same form as the plot buttons, so you shouldn't need the ***frmRes/*** bit. Each button can use similar code, pointing towards the same graphics object.
