Temperature distribution in the focal plane of a solar dish receiver

Posted Dec 11, 2019, 8:01 p.m. EST Ray Optics, Heat Transfer & Phase Change, Results & Visualization Version 5.3a 0 Replies

Edoardo Montà
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

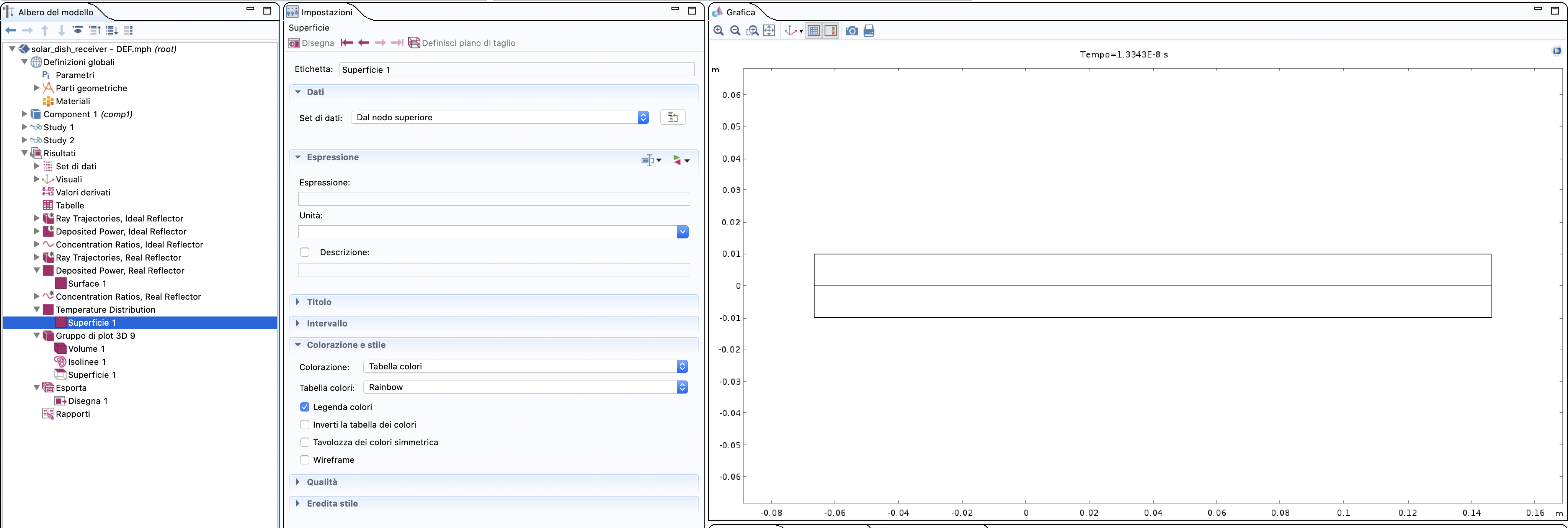

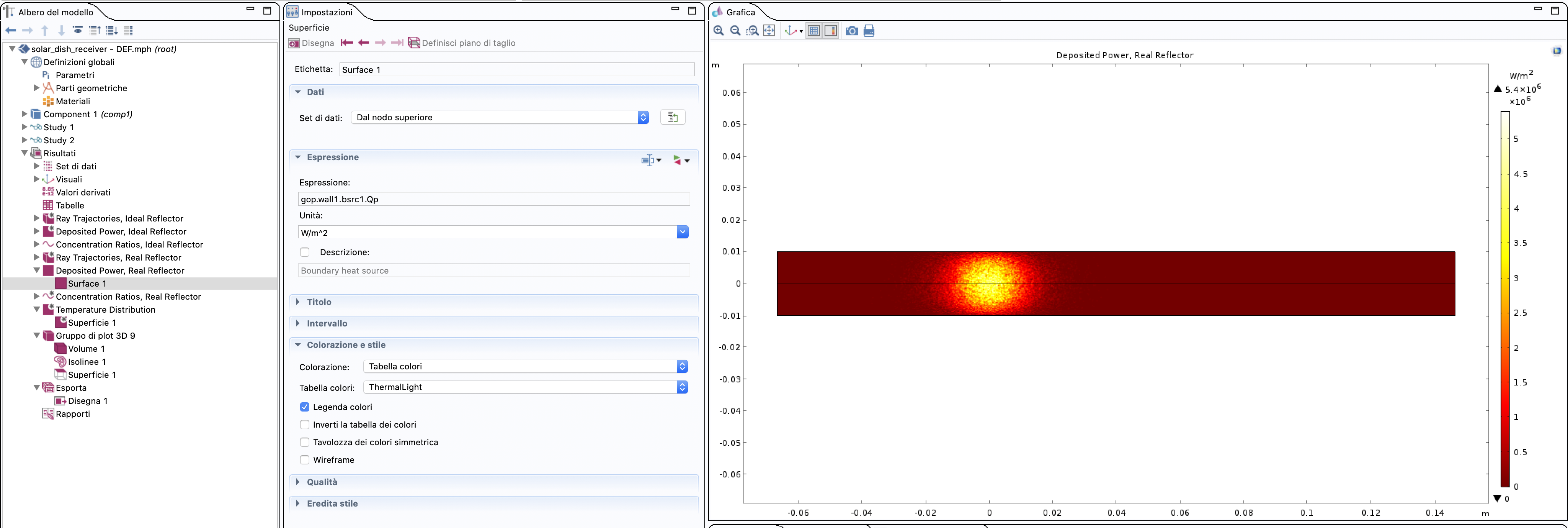

I have a question regarding the solar dish model: is it possible to evaluate the temperature distribution in the focal plane? I noticed that in the “Results” section, by adding “2D plot group”, a temperature map ("Temperature distribution") of the focal plane can obtained, but it is necessary to insert a specific formula in the form “gop.wall1.bsrc1……”. Do you know the exact expression that should be written?

Thanks for your help

0 Replies Last Post Dec 11, 2019, 8:01 p.m. EST
COMSOL Moderator

Hello Edoardo Montà

Your Discussion has gone 30 days without a reply. If you still need help with COMSOL and have an on-subscription license, please visit our Support Center for help.

If you do not hold an on-subscription license, you may find an answer in another Discussion or in the Knowledge Base.

Note that while COMSOL employees may participate in the discussion forum, COMSOL® software users who are on-subscription should submit their questions via the Support Center for a more comprehensive response from the Technical Support team.
