"Modeling of a 3D Inductor" - Cannot define output
Posted Feb 12, 2020, 2:23 p.m. EST Low-Frequency Electromagnetics, General, Geometry Version 5.5 2 Replies
Please login with a confirmed email address before reporting spam
Hello,

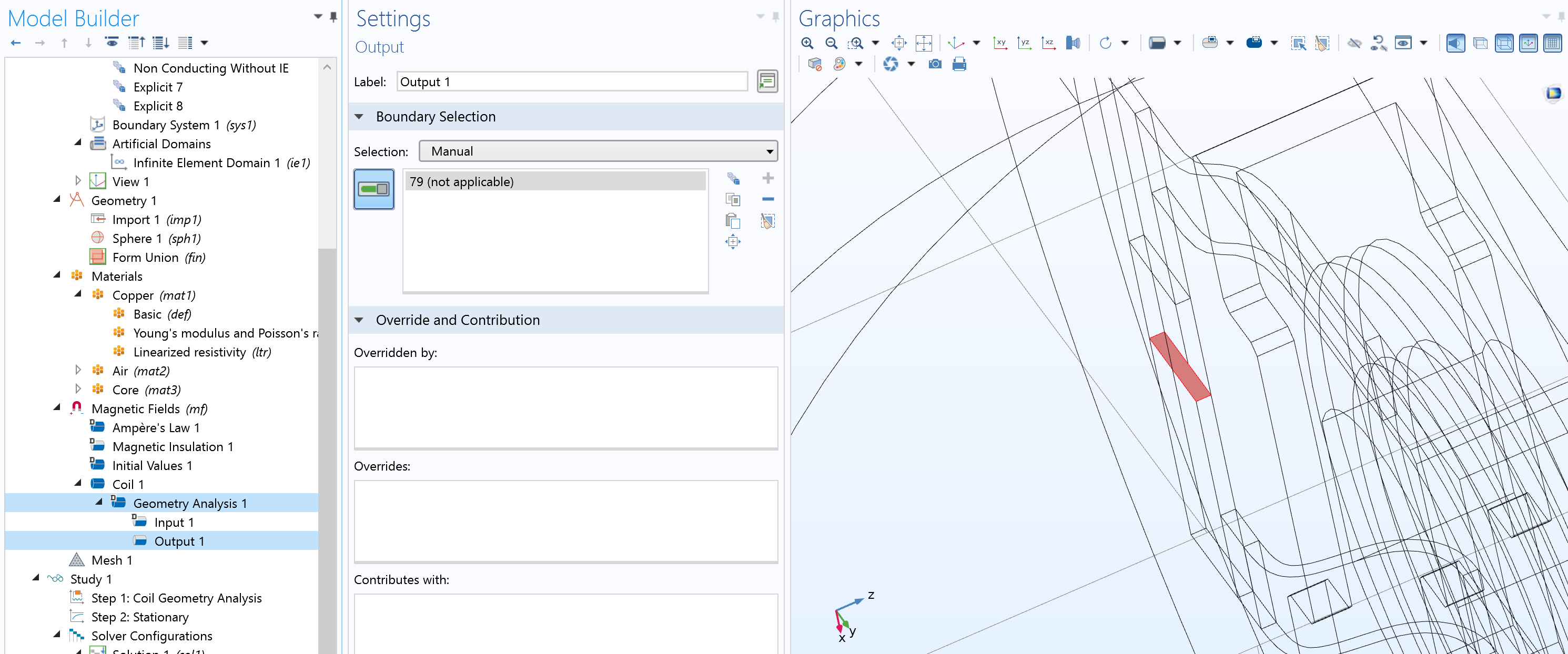

I'm currently following the "Modeling of a 3D Inductor" tutorial and have run into a strange issue. I cannot define an output for my magnetic field study as the guide directs me to. When I try to select a boundary, all options have (not applicable) written next to them. I'd like to select boundary 79 as my output (see screenshot attachment).
I've followed the instructions to a T thus far so I'm not sure what might be causing this issue or how I can resolve it.
Thanks for your kind assistance.
The model and tutorial document can be found on https://www.comsol.com/model/modeling-of-a-3d-inductor-10299
Attachments:
Please login with a confirmed email address before reporting spam
the output port should be at the boundary of the air box，and the you could set the surface 79 as the output. my mail is 18709281522@163.com, welcome.
Please login with a confirmed email address before reporting spam
Hi Michael Spinazze, If you share the model, I can go through it if you have not solved it yet. Regards, Okan
