two fixed cantilever beam

Posted Jan 12, 2012, 1:55 p.m. EST 0 Replies

Kalapura Mathad Vinayaka Swamy
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

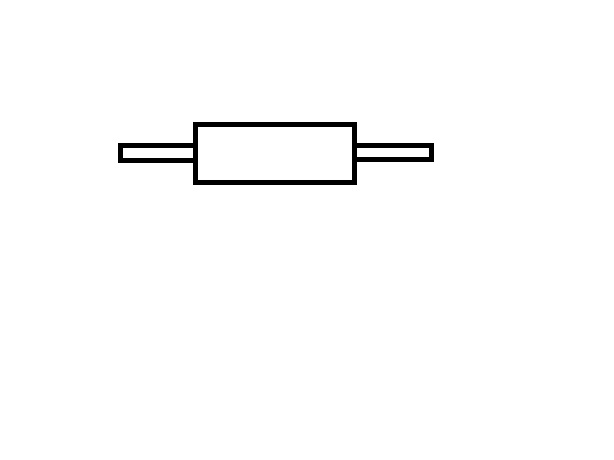

length of anchors is 400um width 10um thickness 1 um and parallel plate 400*400um^2 with gap between two electrodes is 2um.
please calculate the pull in voltage and displacement for 0.2 v

Attachments:

0 Replies Last Post Jan 12, 2012, 1:55 p.m. EST
