How to reuse the result of a previous simulation as an input for the second simulation?

Posted Mar 18, 2020, 11:34 p.m. EDT Structural & Acoustics, General, Geometry, Mesh, Studies & Solvers, Structural Mechanics 6 Replies

Montassar Akrmi
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Hi, I am looking for the steps needed to reuse a deformed hyperelastic shape with stress results created in response to a prescribed displacement, for a second simulation with new boundary conditions. Thank you in advance,

6 Replies Last Post Jul 18, 2020, 5:07 p.m. EDT
Henrik Sönnerlind COMSOL Employee

Please login with a confirmed email address before reporting spam

Posted: 5 years ago Mar 19, 2020, 3:30 a.m. EDT

Hi Montassar,

Exactly what type of change is it that you are going to do to the boundary conditions?

-------------------
Henrik Sönnerlind
COMSOL
Hi Montassar, Exactly what type of change is it that you are going to do to the boundary conditions?
Montassar Akrmi
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 5 years ago Mar 19, 2020, 12:38 p.m. EDT

Hi Mr Henrik

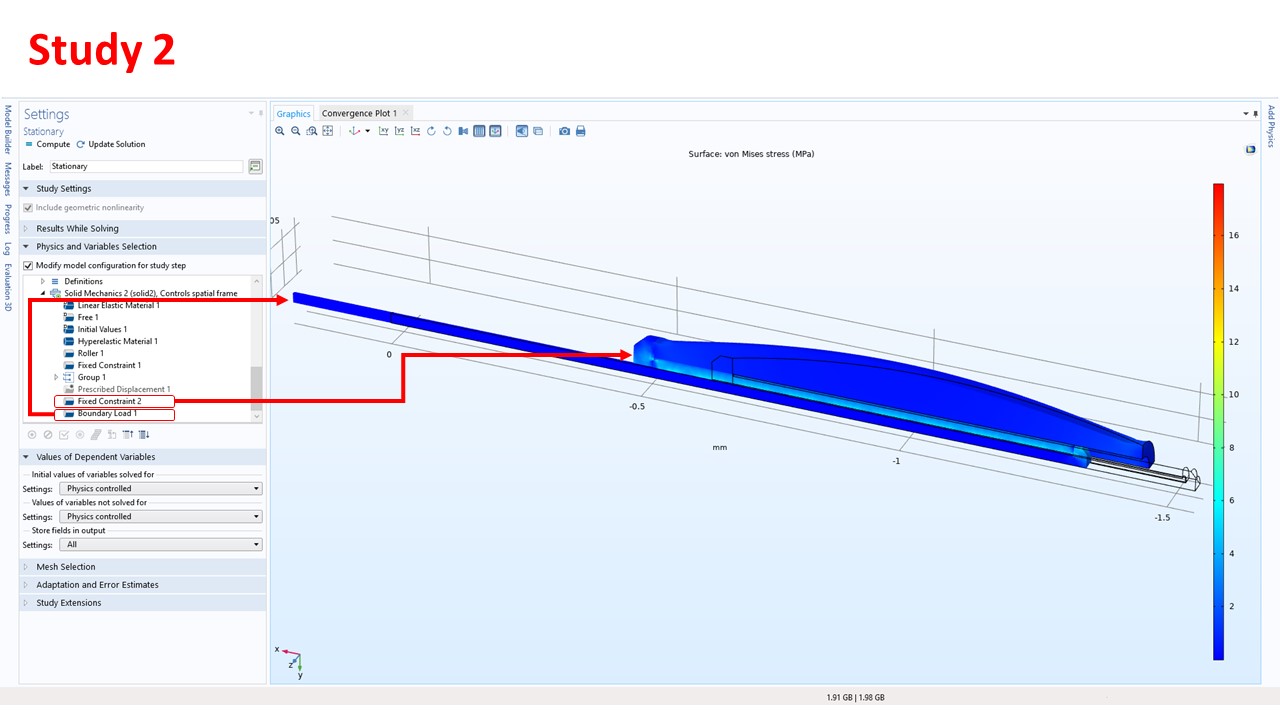

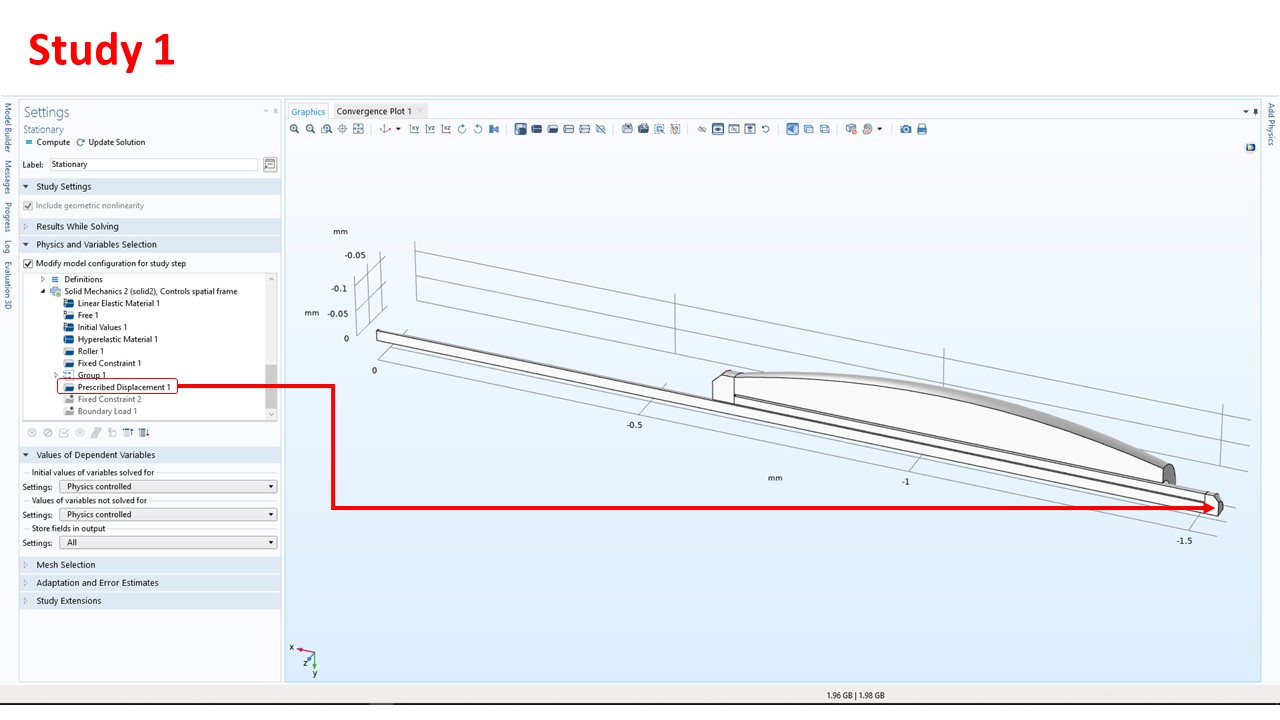

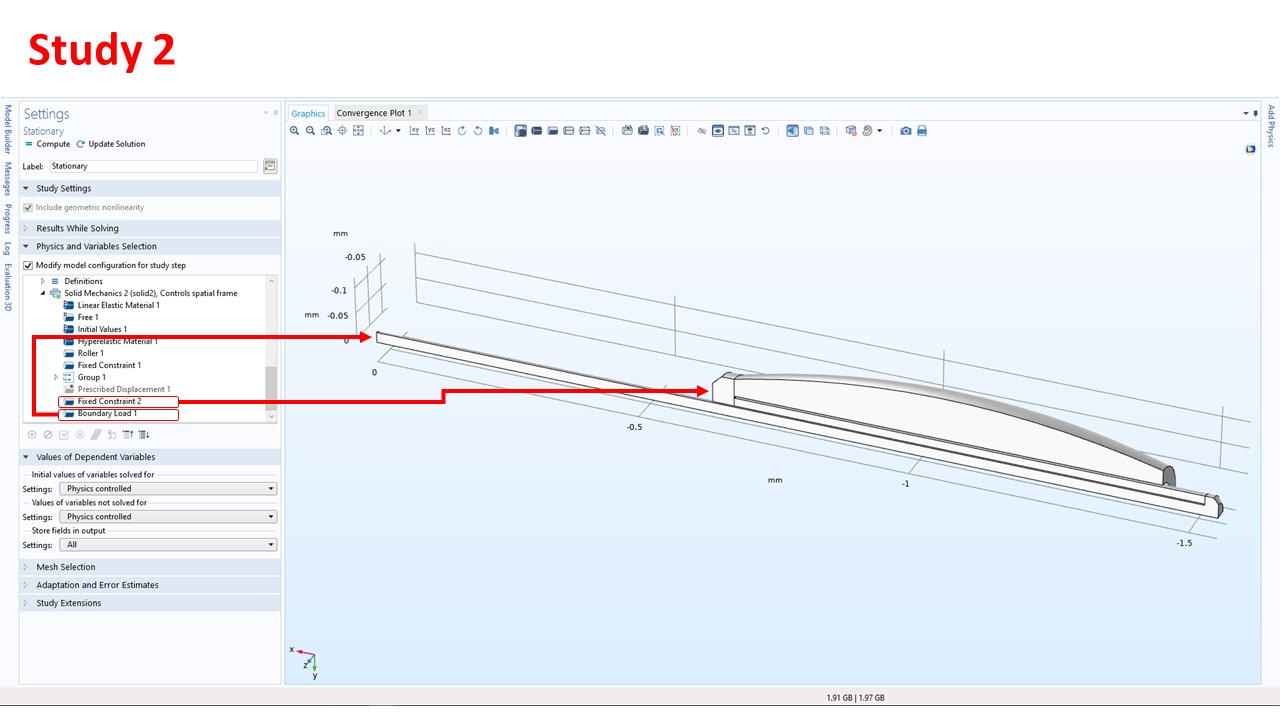

I am just trying to Disable the Prescribed Displacement of Study 1 Enable the Fixed Constraint Boundary Load of Study 2, and apply to the deformed shape with stress results of Study 1.

Hi Mr Henrik I am just trying to Disable the **Prescribed Displacement** of *Study 1* Enable the **Fixed Constraint** **Boundary Load** of *Study 2*, and apply to the deformed shape with stress results of *Study 1*.
Henrik Sönnerlind COMSOL Employee

Please login with a confirmed email address before reporting spam

Posted: 5 years ago Mar 20, 2020, 10:57 a.m. EDT

This is not trivial. Removing a constraint will for example usually give some springback.

Things are also very different if for example plastic deformations are involved (since for an elastic problem, the path to the final state is not interesting).

One way of removing a constraint smoothly is to implement it using a penaly formulation, and gradually remove the penalty factor. See also https://www.comsol.com/blogs/how-to-make-boundary-conditions-conditional-in-your-simulation

-------------------
Henrik Sönnerlind
COMSOL
This is not trivial. Removing a constraint will for example usually give some springback. Things are also very different if for example plastic deformations are involved (since for an elastic problem, the path to the final state is not interesting). One way of removing a constraint smoothly is to implement it using a penaly formulation, and gradually remove the penalty factor. See also
Haishan Tang
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 5 years ago Apr 4, 2020, 11:15 a.m. EDT

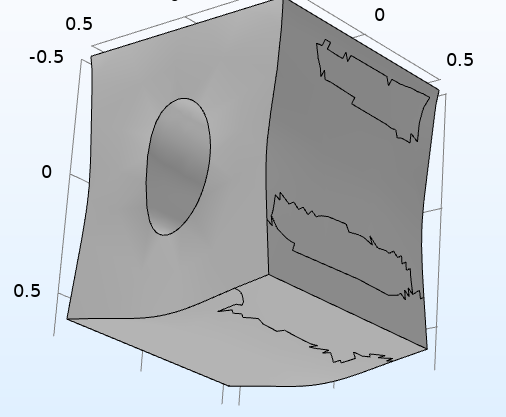

Hi, I would like to simulate the band gap of a deformed phononic crystal. Firstly, I will simulate the deformation of the porous structure under the external load, and then, the deformed structure with initial stresses can be useded as the new geometric input for the next step. I see the details in the following blog post: www.comsol.com/blogs/how-to-reuse-a-deformed-shape-as-a-geometry-input/. However, when I use this technique, several strange lines are at the surface of the input model. Moreover, this input model has no initial stresses. So how can I export the deformed structure with initial stresses for next study? Do you have other methods? Thanks in advance. Best regards, Haishan Tang

Hi, I would like to simulate the band gap of a deformed phononic crystal. Firstly, I will simulate the deformation of the porous structure under the external load, and then, the deformed structure with initial stresses can be useded as the new geometric input for the next step. I see the details in the following blog post: www.comsol.com/blogs/how-to-reuse-a-deformed-shape-as-a-geometry-input/. However, when I use this technique, several strange lines are at the surface of the input model. Moreover, this input model has no initial stresses. So how can I export the deformed structure with initial stresses for next study? Do you have other methods? Thanks in advance. Best regards, Haishan Tang

Attachments:

Montassar Akrmi
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 5 years ago Apr 15, 2020, 10:12 p.m. EDT
Updated: 4 years ago Jul 9, 2020, 6:37 a.m. EDT

Hi Haishan Tang In fact, your question is what I'm looking for. unfortunately, so far I haven't been able to find an answer, maybe Mr. Henrik's suggestions might help, but I think it is not the exact or simplest way to solve the problem.

Hi Haishan Tang In fact, your question is what I'm looking for. unfortunately, so far I haven't been able to find an answer, maybe Mr. Henrik's suggestions might help, but I think it is not the exact or simplest way to solve the problem.
Montassar Akrmi
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 4 years ago Jul 18, 2020, 5:07 p.m. EDT
Updated: 4 years ago Jul 18, 2020, 5:08 p.m. EDT

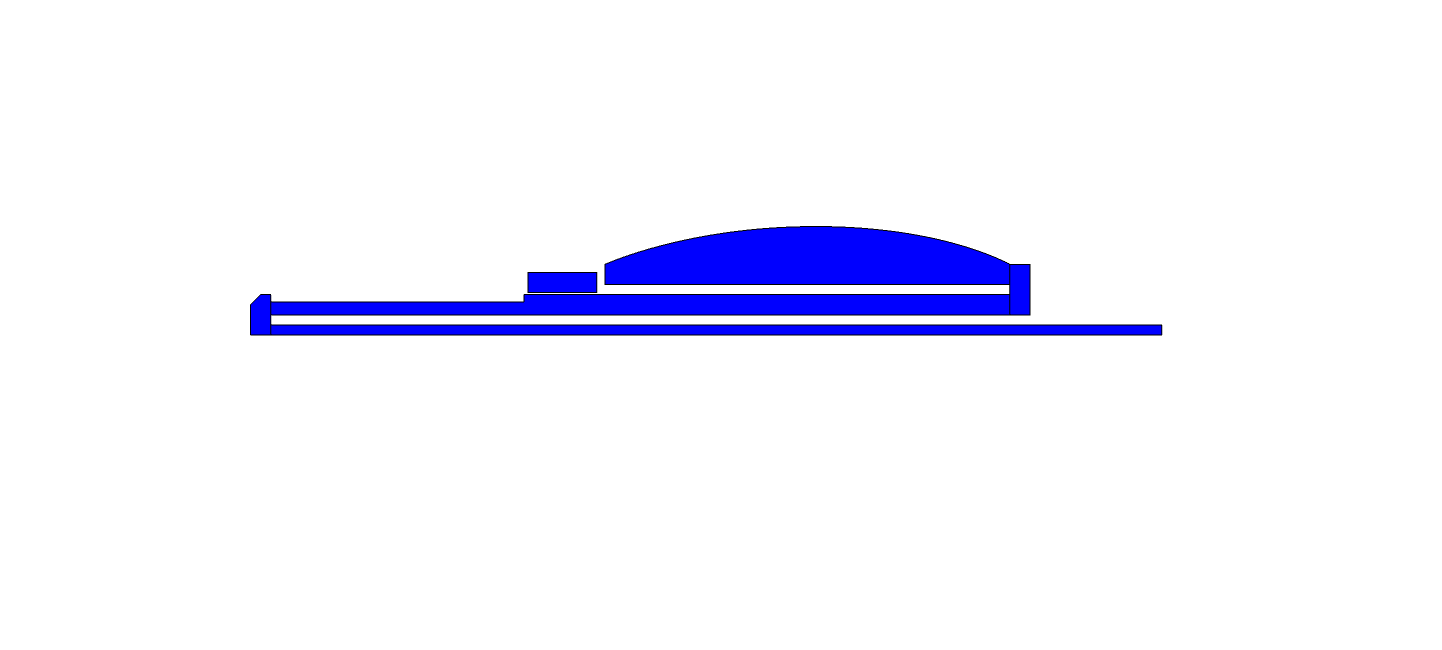

Regarding the last update of my inquiry, I solved by some simple steps, First, instead of two 'Stationary' simulations, I used one 'Time-dependent' to integrate a sequence of simulations. Second, Instead of the 'Prescribed Displacement', I used 'Boundary Load', and by this, I could eliminate the applied force gradually during the simulation by using an 'Interpolation' function, which is not possible by using 'Prescribed Displacement'. (The same idea of M. Henrik I think.) And third, placing anchors to hold the new deformed shape during the simulation. I hope this will help the future reader,

Regarding the last update of my inquiry, I solved by some simple steps, First, instead of two 'Stationary' simulations, I used one 'Time-dependent' to integrate a sequence of simulations. Second, Instead of the 'Prescribed Displacement', I used 'Boundary Load', and by this, I could eliminate the applied force gradually during the simulation by using an 'Interpolation' function, which is not possible by using 'Prescribed Displacement'. (The same idea of M. Henrik I think.) And third, placing anchors to hold the new deformed shape during the simulation. I hope this will help the future reader,

Attachments:
