Problem with lower coil excitation frequency in Magnetic Field mf module

Posted Apr 24, 2020, 12:45 a.m. EDT Low-Frequency Electromagnetics, General Version 5.4 2 Replies

Siripong Cheanklin
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Dear All,

I'm working on the eddy current sensor simulation with the different target material. According to my model, I cannot apply the coil excitation frequency lower than 20 kHz, for example, 1,000 Hz. The results do not converge.

Please advise how to adjust the simulation model to solve this problem.

Many thanks,

Siripong

Attachments:

2 Replies Last Post Apr 25, 2020, 4:38 a.m. EDT
Sergei Yushanov Certified Consultant
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 4 years ago Apr 24, 2020, 9:31 a.m. EDT

Siripong,

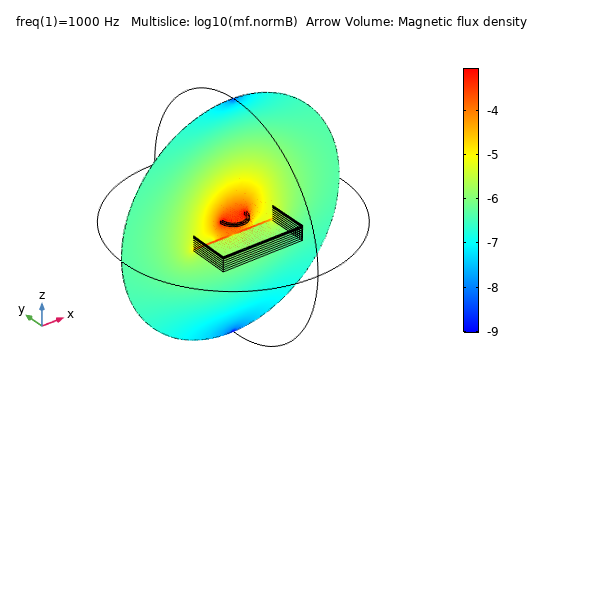

This is so called conductivity scaling effect - set air conductivity to some small number, say 1 S/m, then Compute.

Regards

Sergei

Siripong, This is so called conductivity scaling effect - set air conductivity to some small number, say 1 S/m, then Compute. Regards Sergei

Attachments:

Siripong Cheanklin
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 4 years ago Apr 25, 2020, 4:38 a.m. EDT

Dear Sergei

Thank you very much!

Siripong

Dear Sergei Thank you very much! Siripong
