Why are my results when plotting pn the y-axis lower then on the x axis? (Electric field)
Posted Oct 4, 2020, 2:24 a.m. EDT Electromagnetics, Low-Frequency Electromagnetics, General 1 Reply
Please login with a confirmed email address before reporting spam
Hi,

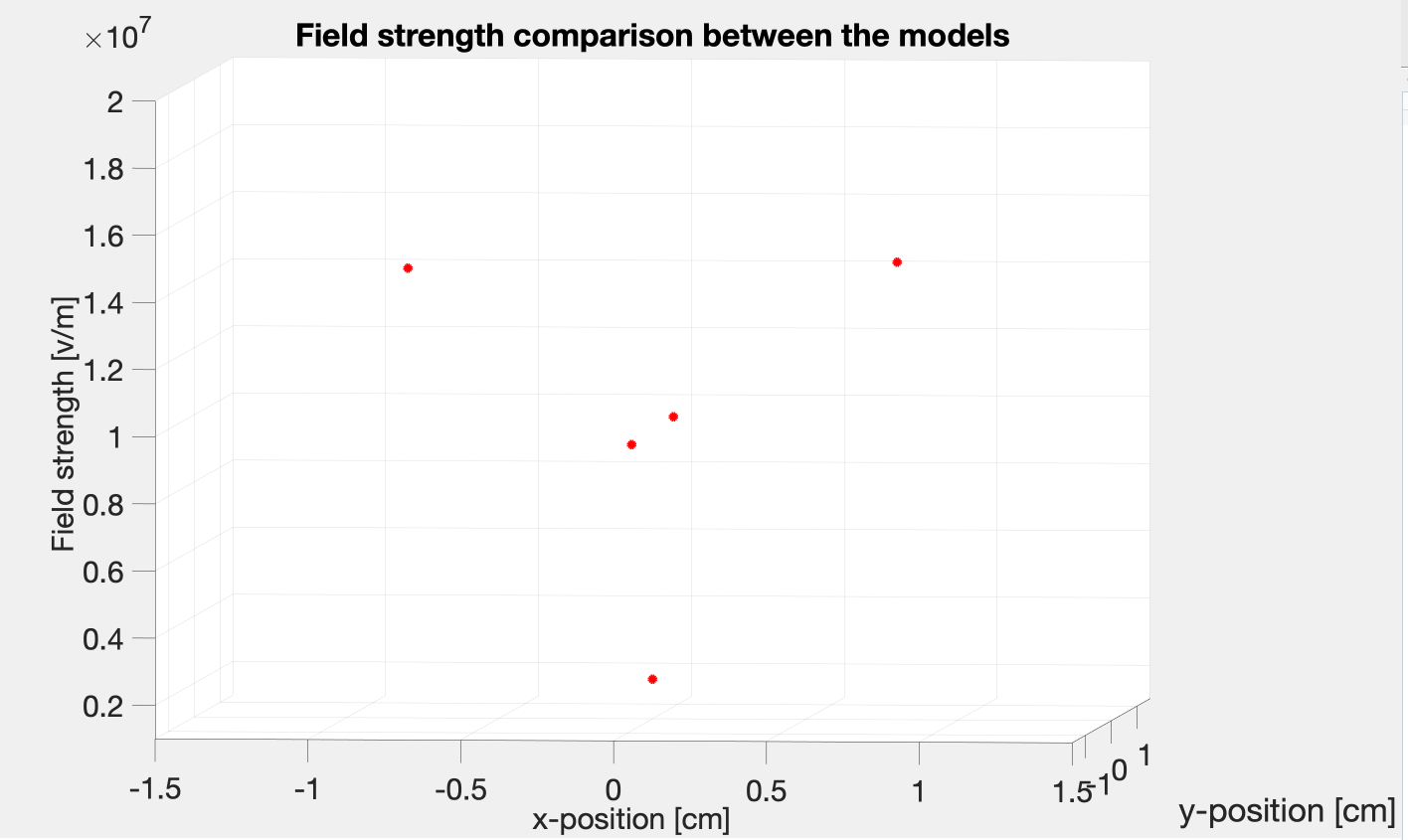

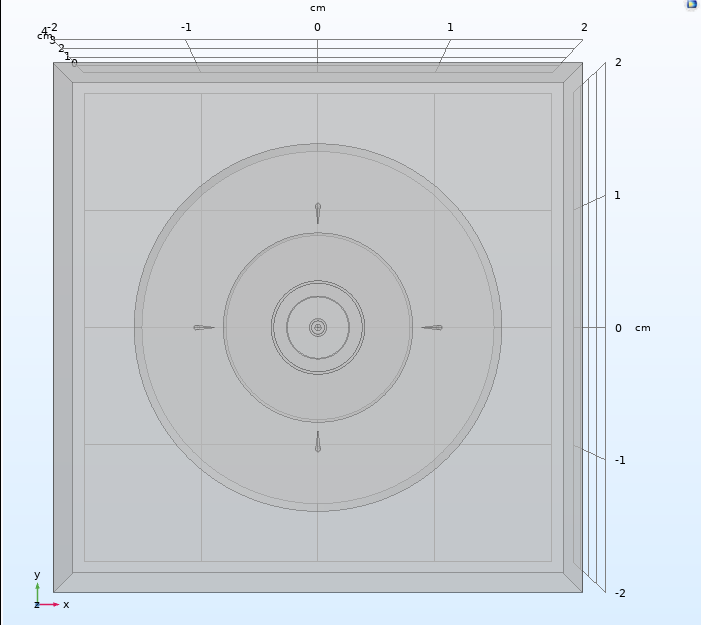

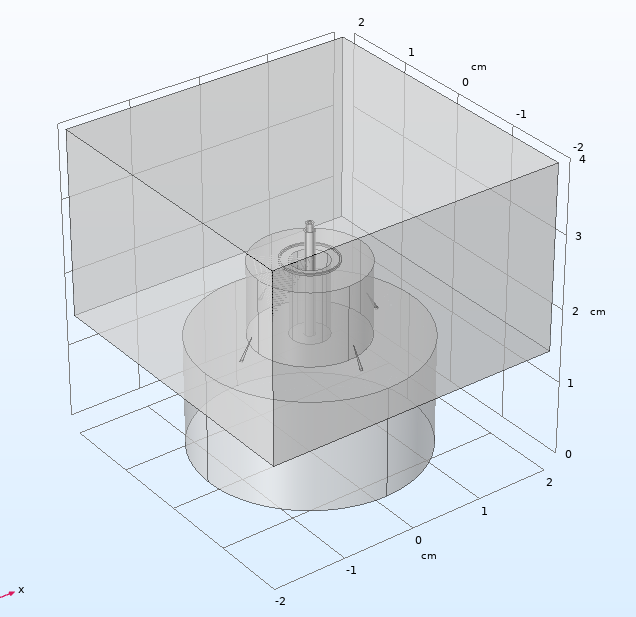

I am modelling an inhalator and looking at the electric field strength. I have built the geometry and assigned the boundary conditions etc. When I plot the results I see an repeating inconsistency in the results. The field strenght in my needles on the y axis(x=0) are lower then my field strenght in the needles on the x axis (y=0) however the symstem is symmetric. So I expect the values to be all the same. Can someone help me out ??!
Attachments:
Please login with a confirmed email address before reporting spam
There are many ways to make mistakes in setting up a multiphysics model. I suggest you post the actual model file to allow others to take a look. Could be a meshing issue, boundary condition error, or one of many other possibilities.
-------------------Scientific Applications & Research Associates (SARA) Inc.
www.comsol.com/partners-consultants/certified-consultants/sara
