How and where to write the SOC expression in lithium-ion battery module

Posted Mar 22, 2021, 6:48 a.m. EDT Battery Design 2 Replies

Mohammad Faizan
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

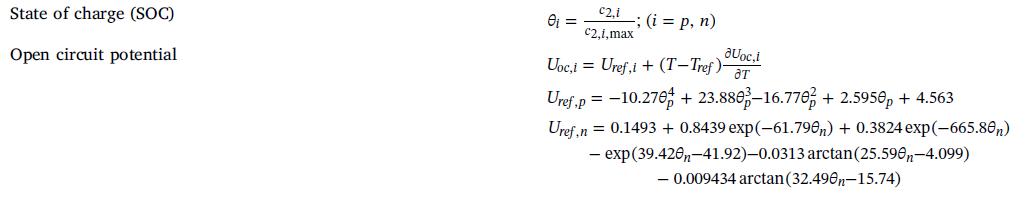

I am working in the lithium-ion battery and want to add some expression in the COMSOl. How can we rite these below attached expression.

Attachments:

2 Replies Last Post Mar 26, 2021, 1:50 a.m. EDT
Guang Yang
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 4 years ago Mar 25, 2021, 4:02 a.m. EDT

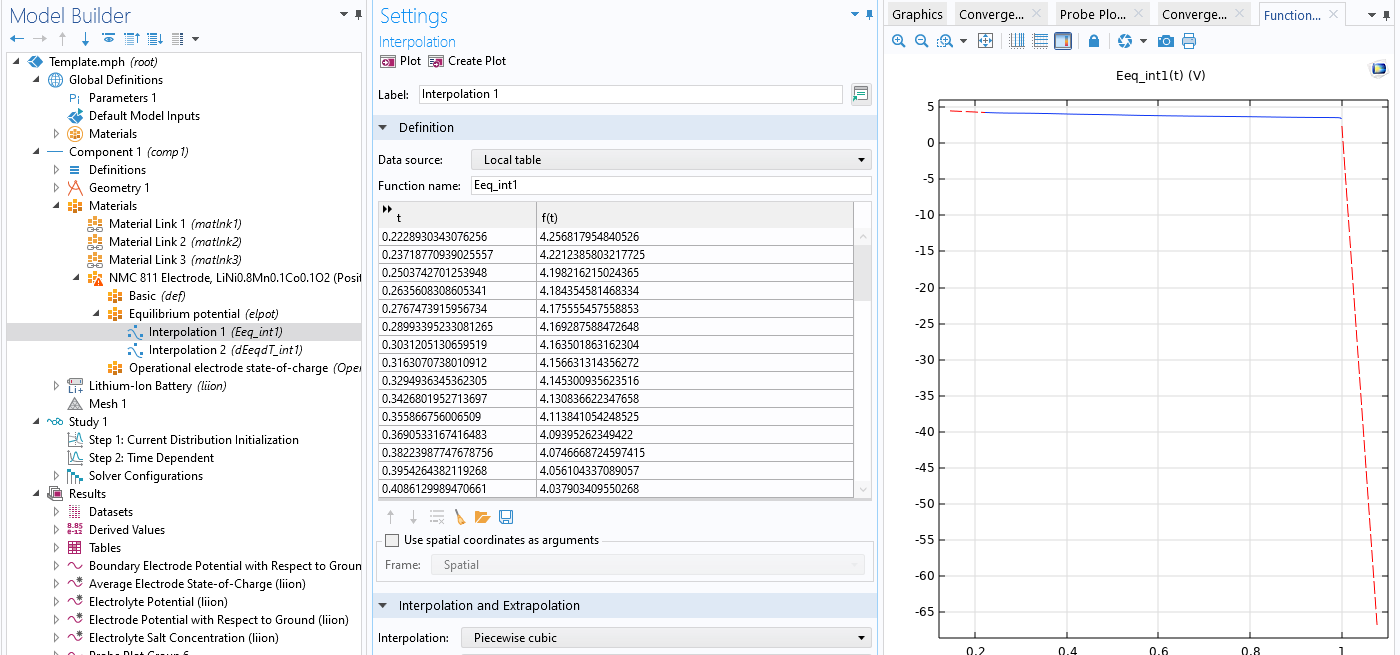

I think the best way is to generate the data point from 0 to 1 SOC. and copy the data point into comsol to generate a point. like what they did for all the other materials

I think the best way is to generate the data point from 0 to 1 SOC. and copy the data point into comsol to generate a point. like what they did for all the other materials

Attachments:

Mohammad Faizan
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 4 years ago Mar 26, 2021, 1:50 a.m. EDT

@XiuQun Cui from where i can generate the data. I am only doing numerical simulation,

@XiuQun Cui from where i can generate the data. I am only doing numerical simulation,
