Unknown Variable Problem of "Coefficient of Thermal Expansion".
Posted Apr 30, 2021, 6:40 p.m. EDT Structural & Acoustics, Materials, Structural Mechanics 0 Replies
Please login with a confirmed email address before reporting spam
I am doing thermal stress simulation of a gas turbine stator blade made of TiB2. However, while defining the "Coefficient fo Thermal Property" of the material I am getting an error message saying "Unknown variable Tempref". The expression follows here -
(alpha(T[1/K])[1/K]+(Tempref-293[K])if(abs(T-Tempref)>1e-3,(alpha(T[1/K])[1/K]-alpha(Tempref[1/K])[1/K])/(T-Tempref),d(alpha(T[1/K])[1/K],T)))/(1+alpha(Tempref[1/K])[1/K](Tempref-293[K]))

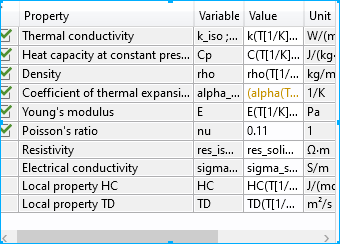

How can I resolve this problem? I have also attached a picture of the problem. Thank you.
Attachments:
Hello Abyaz Abid
Your Discussion has gone 30 days without a reply. If you still need help with COMSOL and have an on-subscription license, please visit our Support Center for help.
If you do not hold an on-subscription license, you may find an answer in another Discussion or in the Knowledge Base.
