Two-phase flow, moving mesh
Posted May 3, 2021, 12:33 p.m. EDT Fluid & Heat, Computational Fluid Dynamics (CFD) Version 5.5 0 Replies
Please login with a confirmed email address before reporting spam
Hi all,
I have a problem when I define the outlet condition for both phases.

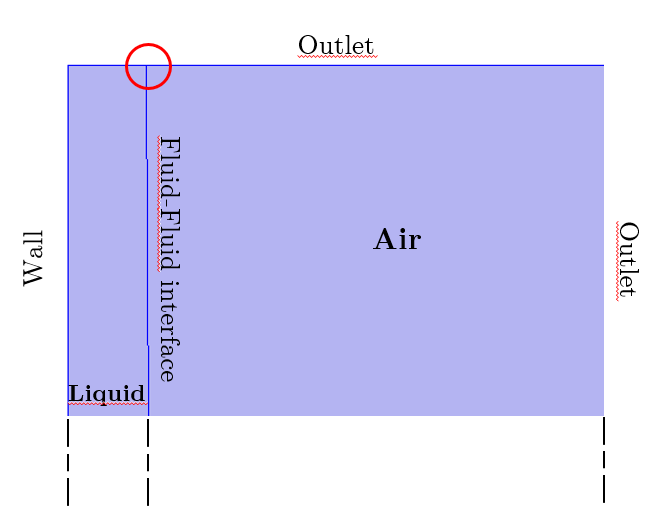

I am running a two phase simulation using the moving mesh method. As you can see from the picture attached, there is a liquid phase and a gas phase separated by a vertical fluid-fluid interface. The upper boundary condition is set as outlet. When I define the liquid-liquid interface, the software automatically set the point in the red circle as part of wall-fluid interface and hence it assosiate to it a contact angle. In reality that point should belong to the outlet and there should not be no contact angle. How can I fix this problem?
Thank you in advance, Fabio
Attachments:
Hello Fabio Pino
Your Discussion has gone 30 days without a reply. If you still need help with COMSOL and have an on-subscription license, please visit our Support Center for help.
If you do not hold an on-subscription license, you may find an answer in another Discussion or in the Knowledge Base.
