CAD Import with layers

Posted Nov 22, 2021, 6:40 a.m. EST CAD Import & LiveLink™ Products for CAD Version 5.6 0 Replies

Polina Pirch
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Hello,

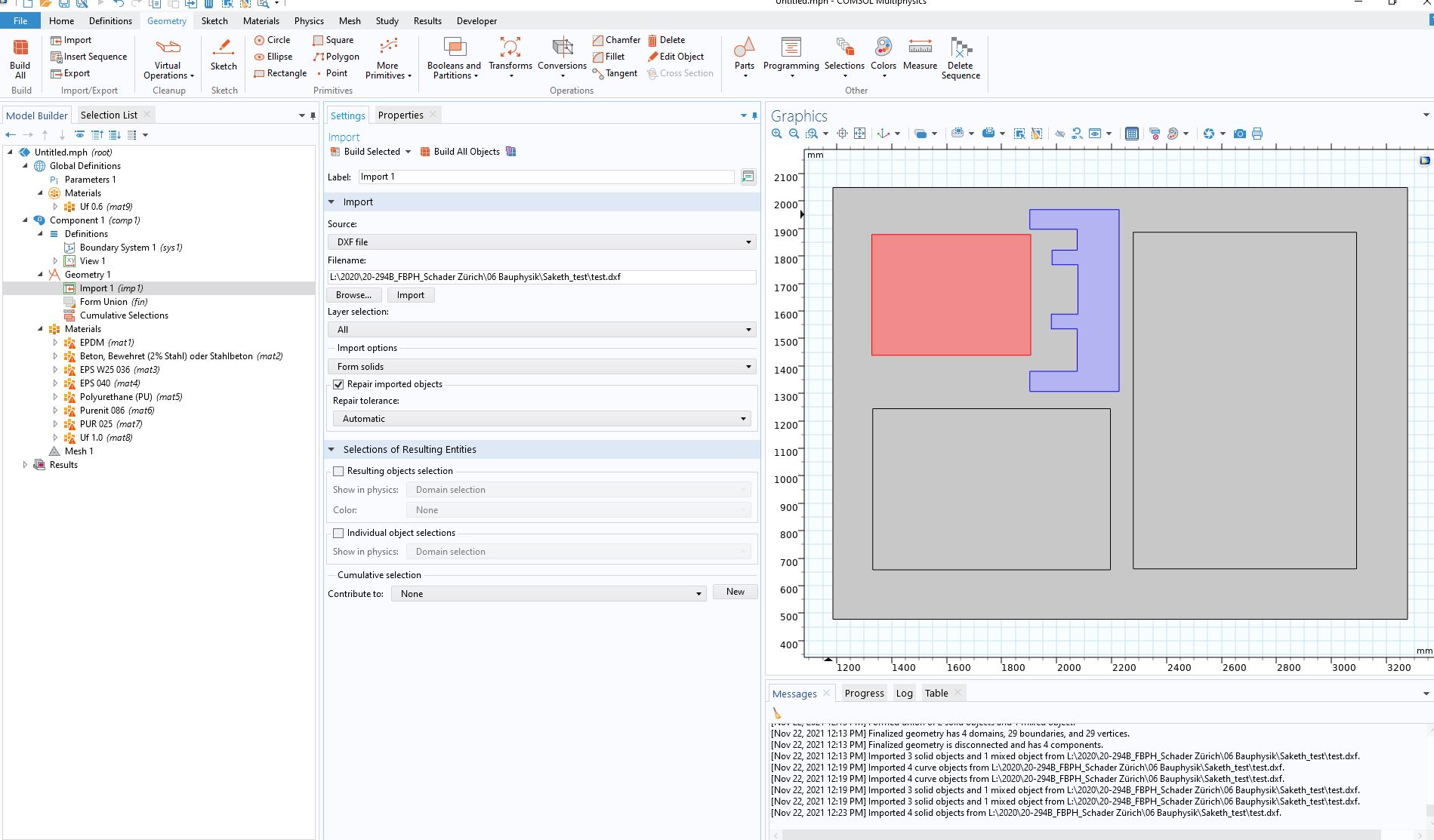

I am trying to import CAD file in dxf format with some layers defined in it. When I import the file, the "Object selections" panel which lists the layers do not show up. It is very important for me to have this selection available as I have to assign materials for simulation.

How do I make that "Object selections" panel visible?

I am attaching a sample geometry file that I am using to test this functionality.

Thanks, Saketh
