Adding layers with different geometries in one stack
Posted Feb 22, 2022, 8:47 a.m. EST Structural & Acoustics, Geomechanics, Structural Mechanics Version 5.6 0 Replies
Please login with a confirmed email address before reporting spam
Hello everyone, I'm working on simulating a composite structure using layered shell interface. since the structure should have different infill patterns for two types of different layers, There needs to be two different layers with two different geometries. what I'm stuck with is how to stack two different type of layer geometries on top of one another, should I define another component ? or should I use two work planes for one component?

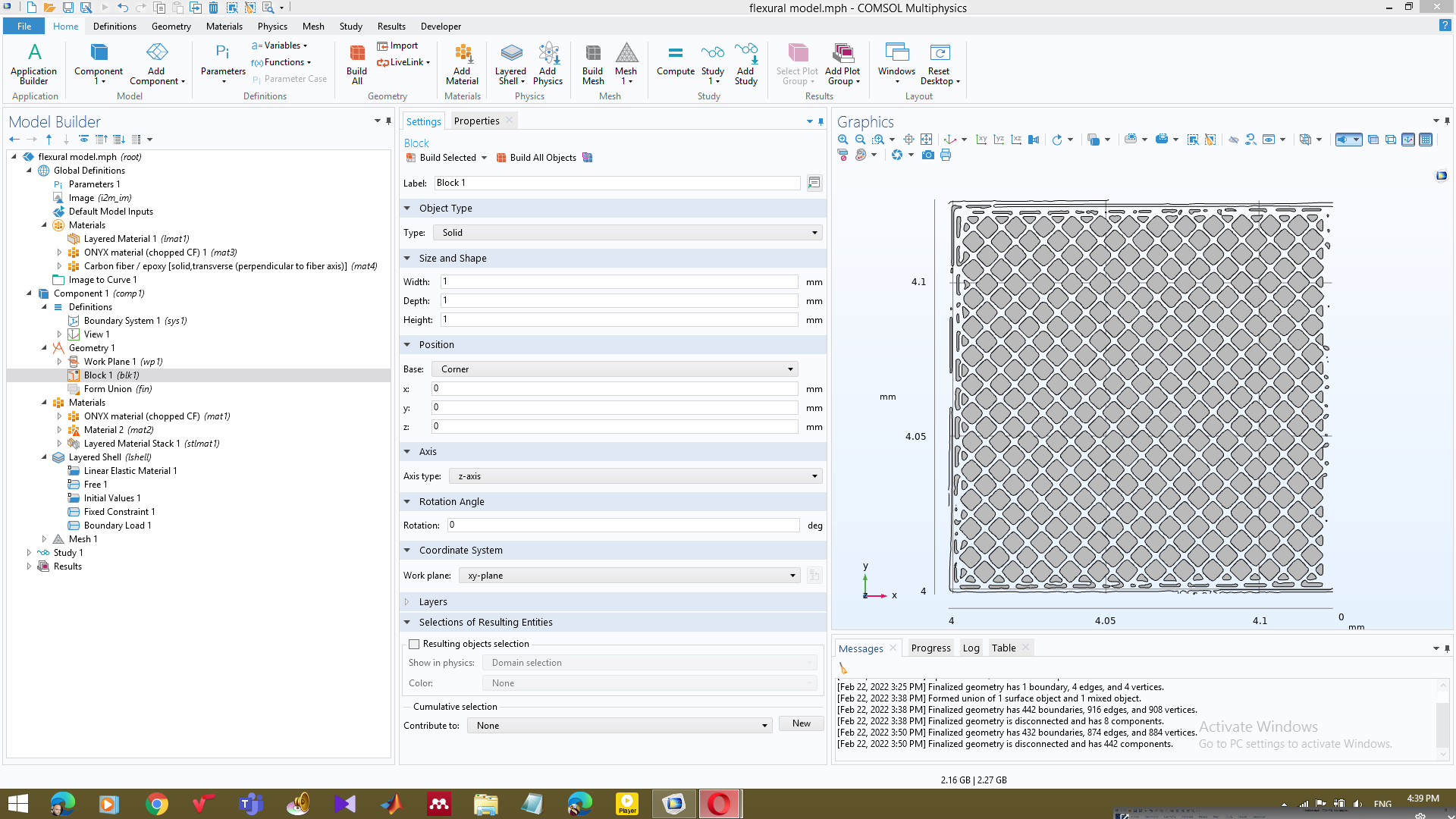

Attachments:
Hello Garshasp Keyvan Sarkon
Your Discussion has gone 30 days without a reply. If you still need help with COMSOL and have an on-subscription license, please visit our Support Center for help.
If you do not hold an on-subscription license, you may find an answer in another Discussion or in the Knowledge Base.
