Piezoelectric Material Properties, Compliance Matrix, Coupling Matrix and Relative Permittivity Matrix

Please login with a confirmed email address before reporting spam

I am trying to verify my model with BaTiO3 real data from the research papers.

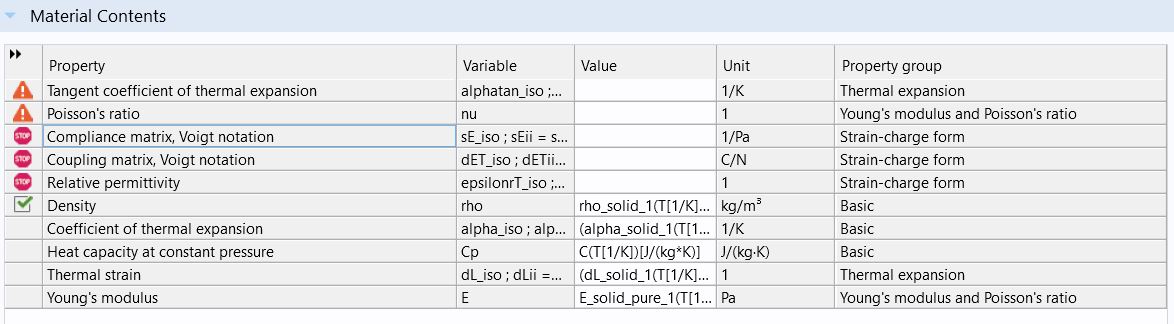

We have values of piezo module , dielectric permeability , tangent of dielectric losses , the resistance and the capacity from experiments. But in COMSOL the piezoelectric material properties are in Matrix Voigt notation form. How can I used these values and convert them to Compliance Matrix, Coupling Matrix and Relative Permittivity Matrix . The Screenshot is attached. Thank you.



0 Replies Last Post Aug 26, 2022, 11:21 a.m. EDT
COMSOL Moderator

Hello Touseef Arshad

Your Discussion has gone 30 days without a reply. If you still need help with COMSOL and have an on-subscription license, please visit our Support Center for help.

If you do not hold an on-subscription license, you may find an answer in another Discussion or in the Knowledge Base.

Note that while COMSOL employees may participate in the discussion forum, COMSOL® software users who are on-subscription should submit their questions via the Support Center for a more comprehensive response from the Technical Support team.
