Measuring Current Density from a 2D Surface, while COMSOL giving me electrical potential results
Posted Dec 8, 2022, 7:38 a.m. EST Results & Visualization, Studies & Solvers 0 Replies
Please login with a confirmed email address before reporting spam

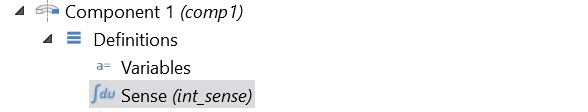

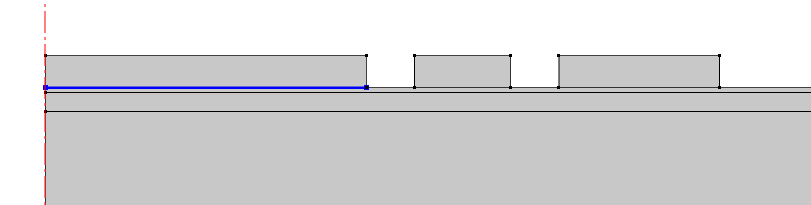

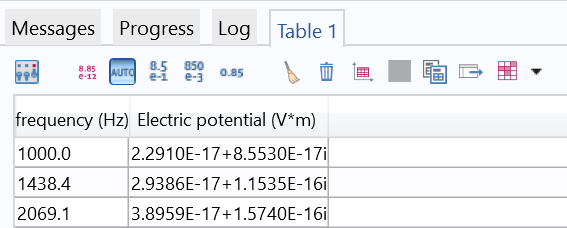

Hi, I am trying to measure the current coming through this surface, by using a line integration: picture 1 in attachment and got this result: picture 2 in attachment I have also set up integration operator at the location: picture 3 in attachment
May I know how do i obtain current density/total current at this location? Thank you!
Please select Mesh 3 for the study.
