cut planes with parameter
Posted Feb 24, 2023, 12:31 a.m. EST Computational Fluid Dynamics (CFD), Results & Visualization, User Interface Version 5.5 0 Replies
Please login with a confirmed email address before reporting spam

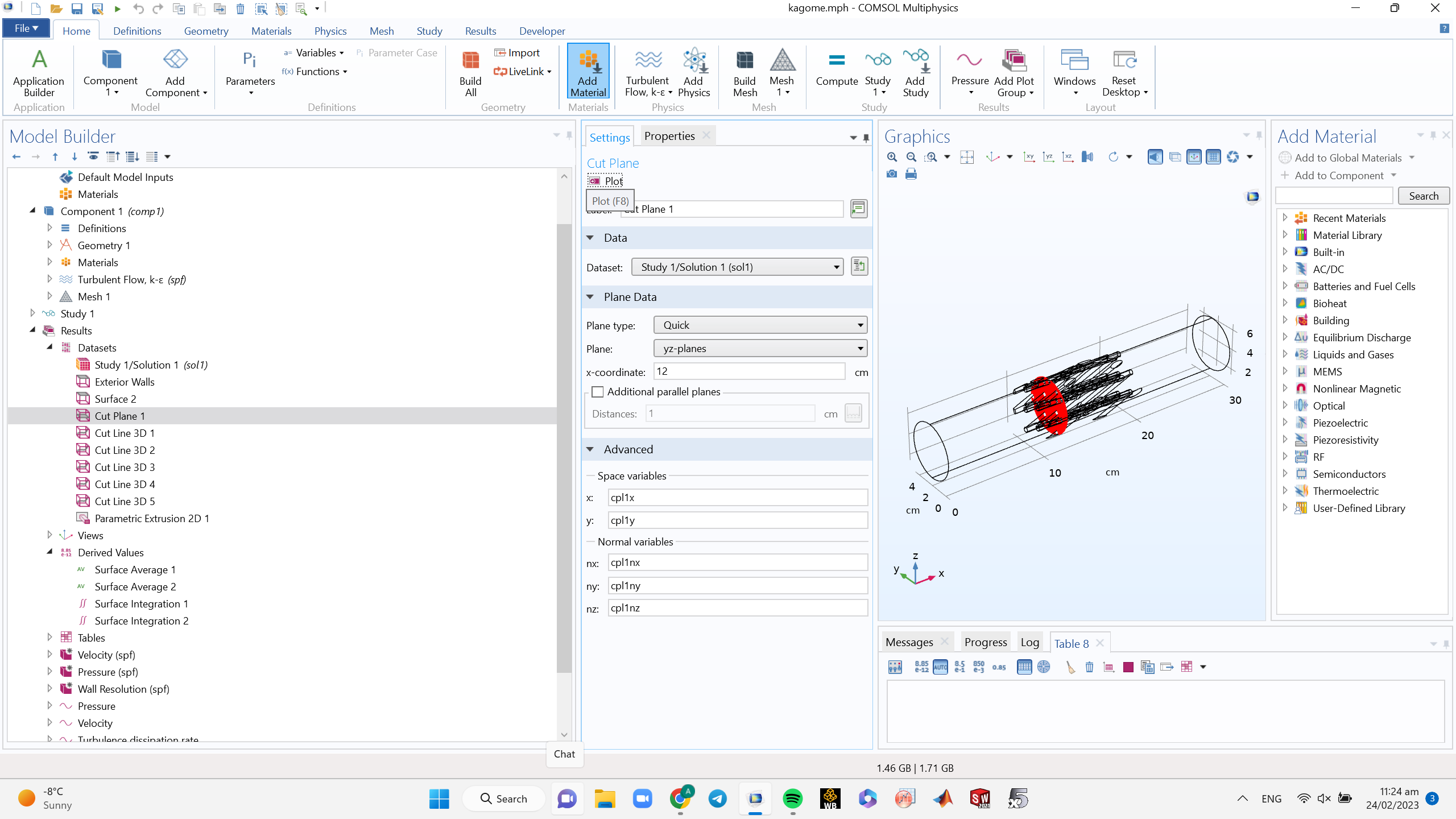

Hello everyone! Could you please help me with defining the cut planes with parameters. I have a 3d model of tube and inside the monolith is inserted. I defined the cut plane yz at specific x. How could I plot a graph of values for different cut planes at different x values. I've read a handbook of comsol, they're using parametric extrusion 2D, but I couldn't find where I can change the parameter x values
Attachments:
Hello Alina Abdikadyr
Your Discussion has gone 30 days without a reply. If you still need help with COMSOL and have an on-subscription license, please visit our Support Center for help.
If you do not hold an on-subscription license, you may find an answer in another Discussion or in the Knowledge Base.
