Topology Optimization Electric Motor: General extrusion

Posted Mar 2, 2023, 5:05 a.m. EST 1 Reply

Thomas Clayson
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

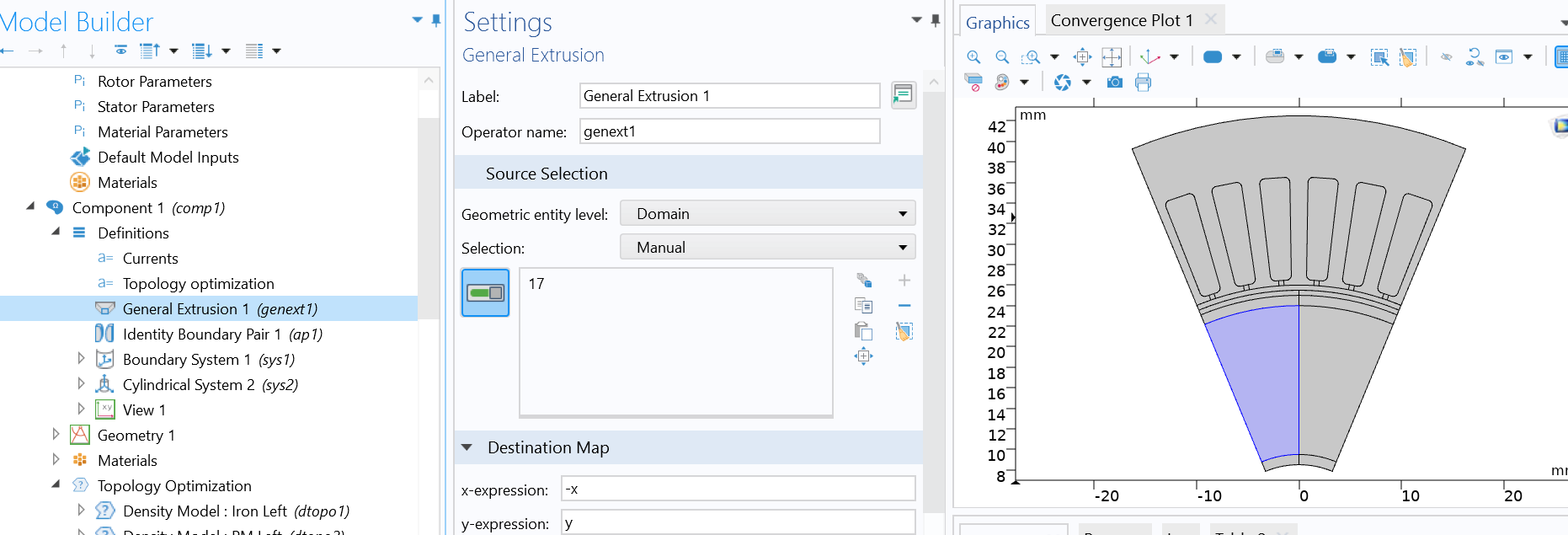

I'm currently trying to optimize the topology of a electric motor. Can the tool "General extrusion" be used with densities of the density methods? I'm trying to create a symmetry on my rotor, where the topology optimization is computed on one half of the rotor sector and on the other half the solution is simply mirrored. I have put in attachement some pictures of the systems. Thanks

Attachments:

1 Reply Last Post Mar 25, 2023, 12:06 p.m. EDT
Acculution ApS Certified Consultant
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 1 year ago Mar 25, 2023, 12:06 p.m. EDT

It is easier to use the Linear Extrusion operator.

-------------------
René Christensen, PhD
Acculution ApS
www.acculution.com
info@acculution.com
It is easier to use the Linear Extrusion operator.
