Deform mesh with an analytic function along a domain boundary
Posted Jul 6, 2023, 9:45 a.m. EDT Simulation Apps, Mesh, Optimization 0 Replies
Please login with a confirmed email address before reporting spam
Hello, I was interested in acquiring comsol and I saw a video about screw compressors, I have learned comsol through videos and youtube, I have a question

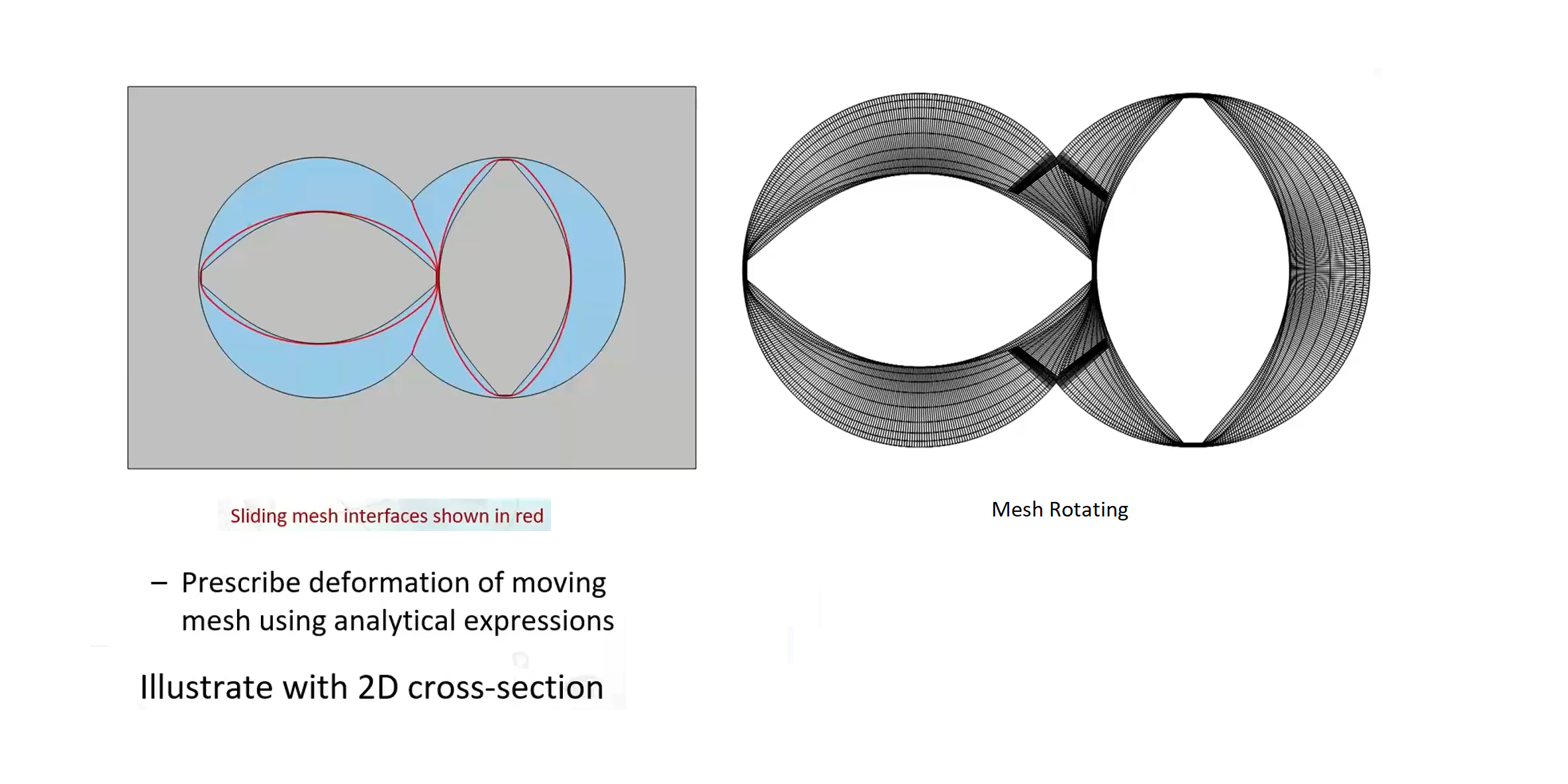

With what analytical function can I make a mesh displacement over an object like the one in this image? Mesh displacements from what I have seen in manual only occur in a single assigned direction How can I deform the mesh with an analytic function along a boundary? look at the image, it is of a screw compressor
Thank you
Attachments:
Hello adrian garcia
Your Discussion has gone 30 days without a reply. If you still need help with COMSOL and have an on-subscription license, please visit our Support Center for help.
If you do not hold an on-subscription license, you may find an answer in another Discussion or in the Knowledge Base.
