extract relative motion for a circle in Translation and rotation

Please login with a confirmed email address before reporting spam

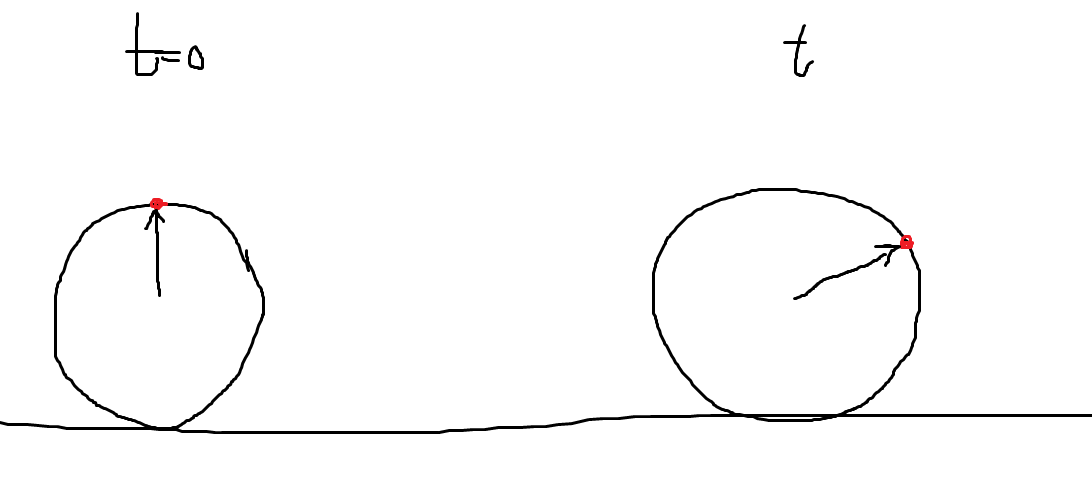

A time dependent analysis with solid mechanics module is imposed on a solid circle as in the attached. The circle is in translation and rotation on the level ground. There are 2 separate models:

1.the model depends on that black vector varing in time (t)

2.the model depends on the position of the centre of the circle varing in time (t)

I need to put either piece of info somewhere in the material property settings. How to extract this info during the solution?



0 Replies Last Post Apr 2, 2024, 10:06 p.m. EDT
COMSOL Moderator

Hello Carl Xu

Your Discussion has gone 30 days without a reply. If you still need help with COMSOL and have an on-subscription license, please visit our Support Center for help.

If you do not hold an on-subscription license, you may find an answer in another Discussion or in the Knowledge Base.

Note that while COMSOL employees may participate in the discussion forum, COMSOL® software users who are on-subscription should submit their questions via the Support Center for a more comprehensive response from the Technical Support team.
