Creat geometry

Posted Jan 13, 2013, 5:34 p.m. EST Heat Transfer & Phase Change Version 4.3 1 Reply

Nadjiba Mahfoudi
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Hi everybody,
I would like to know how to create a serpentine heat exchanger inside a block of material (2 D and 3D)?
Thanks
1 Reply Last Post Jan 18, 2013, 9:52 a.m. EST
Frank van Gool COMSOL Employee

Please login with a confirmed email address before reporting spam

Posted: 1 decade ago Jan 18, 2013, 9:52 a.m. EST
Hello Nadjiba,

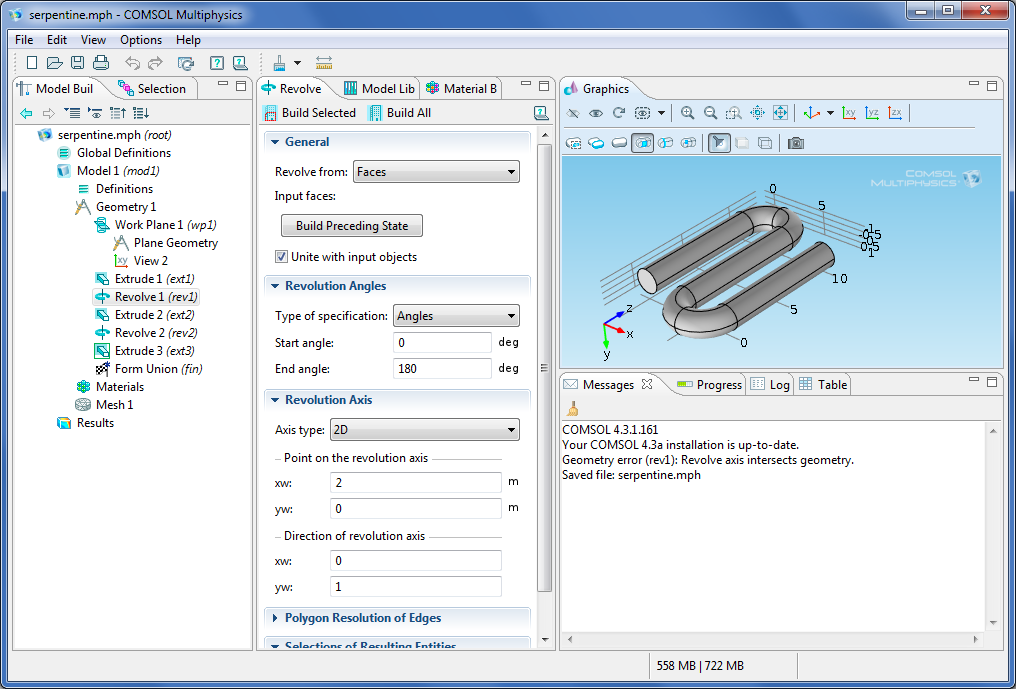

you can create a serpentine by extruding a face on a cylinder, alternated with a revolve operation (see screenshot).

Note that you can select a workplane or an existing face for these operators, a face is needed is this case.

Best regards,
Frank

Hello Nadjiba, you can create a serpentine by extruding a face on a cylinder, alternated with a revolve operation (see screenshot). Note that you can select a workplane or an existing face for these operators, a face is needed is this case. Best regards, Frank

Attachments:
