Failed to evaluate variable Jacobian

Posted Jan 18, 2013, 3:08 a.m. EST RF & Microwave Engineering, Studies & Solvers Version 4.2 7 Replies

Michel Roy
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Hi
I simulate the rib waveguide with the sio2 substrate and material of the core Er:Ta2o5
i define the lambda=1550nm in global definition>parameters, and in the step 1:frequency domain:c_const/lambda
in the electromagnetic wave field i define 2 port for the core(Er:Ta2o5):
port 1:port type :rectangular and wave excitation is on
port 2: port type :rectangular and wave excitation is off
mode type is TE,mode number :10

when i want to simulate,i am getting the following error:

Failed to evaluate variable Jacobian.
- Variable: mod1.emw.tE0modex_2
- Geometry: 1
- Boundary: 7
do you know how to fix this problem?
Thanks in advance for the comments

Michael
7 Replies Last Post Jan 21, 2013, 2:27 p.m. EST
Samuele Lilliu
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 1 decade ago Jan 18, 2013, 8:58 a.m. EST
try with a different name for lambda, such as lambda_1
try with a different name for lambda, such as lambda_1
Michel Roy
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 1 decade ago Jan 18, 2013, 12:40 p.m. EST
Hi Samuele

I do it but it does'nt worked. do you have other suggestion?

Thanks in advance
Hi Samuele I do it but it does'nt worked. do you have other suggestion? Thanks in advance
Alexander Kuznetsov
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 1 decade ago Jan 18, 2013, 2:55 p.m. EST
Most likely your problem is with boundary condition at boundary 7. It's hard to tell how to fix it without knowing what boundary 7 is.
Most likely your problem is with boundary condition at boundary 7. It's hard to tell how to fix it without knowing what boundary 7 is.
Michel Roy
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 1 decade ago Jan 19, 2013, 8:19 a.m. EST
Hi Alexander
Thanks for your response

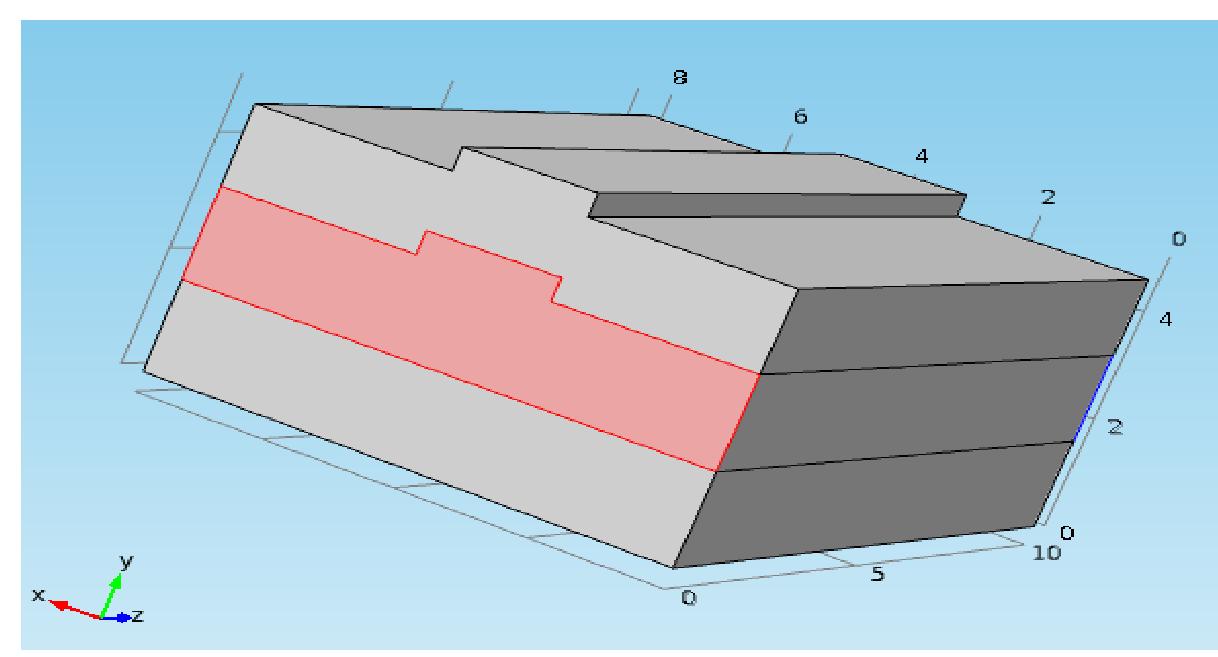

I send you the schematic file and marked the 7 boundary.
Thanks in advance

Hi Alexander Thanks for your response I send you the schematic file and marked the 7 boundary. Thanks in advance

Attachments:

Alexander Kuznetsov
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 1 decade ago Jan 21, 2013, 12:42 p.m. EST
What's the BC on boundary 7?
What's the BC on boundary 7?
Michel Roy
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 1 decade ago Jan 21, 2013, 1:16 p.m. EST
Hi Alexander
sorry, what is the BC ?
Hi Alexander sorry, what is the BC ?
Ivar KJELBERG COMSOL Multiphysics(r) fan, retired, former "Senior Expert" at CSEM SA (CH)
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 1 decade ago Jan 21, 2013, 2:27 p.m. EST
Hi

BC = Boundary Condition in this case value set by a "boundary node" in your physics tree

--
Good luck
Ivar
Hi BC = Boundary Condition in this case value set by a "boundary node" in your physics tree -- Good luck Ivar
