Visualization of Crack Tip Displacement for Applied Loads in 2D CZM Models

Posted Sep 10, 2024, 7:15 p.m. EDT Results & Visualization, Structural Mechanics, Physics Interfaces Version 6.2 0 Replies

Aida Bouaziz
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Hello COMSOL community,

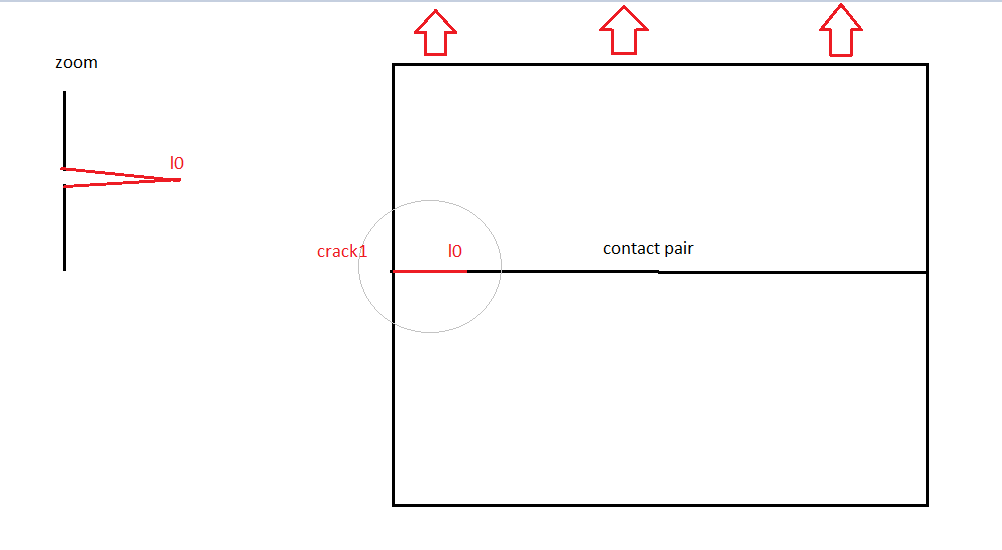

I am working on cohesive zone modeling (CZM) in both 2D and 3D cases in COMSOL. I would like to evaluate the displacement position of the crack tip for different applied load. How can I achieve this visualization based on the CZM model?

Attachments:

0 Replies Last Post Sep 10, 2024, 7:15 p.m. EDT
COMSOL Moderator

Hello Aida Bouaziz

Your Discussion has gone 30 days without a reply. If you still need help with COMSOL and have an on-subscription license, please visit our Support Center for help.

If you do not hold an on-subscription license, you may find an answer in another Discussion or in the Knowledge Base.
