semiconductor module, FN tunneling, boundary condition.

Please login with a confirmed email address before reporting spam

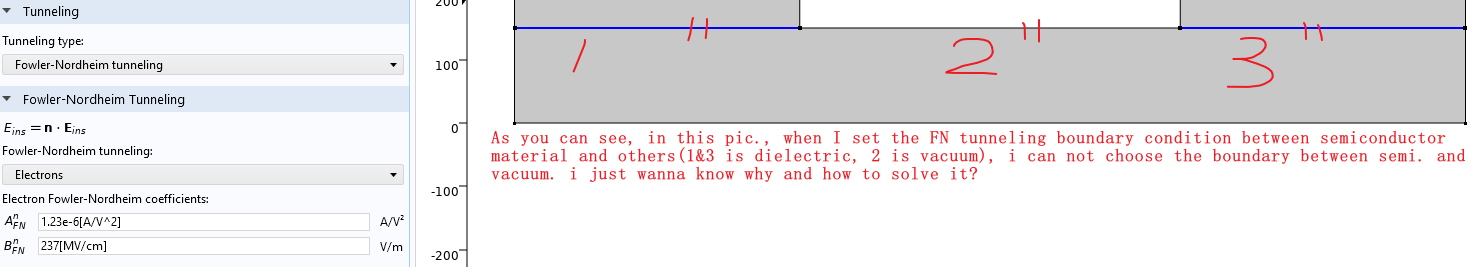

The below post is related to an archived discussion *** [start here]when I was setting the FN boundary condition between semiconductor and others, such as dielectrics and vacuum, I found that I just cannot choose the interface between semiconductor and vacuum, but the one between semi. and dielectric can be chosen. This question has been confusing me a lot. Hope we can discusses it and solve it.
