Wedge-on-Mirror !!

Posted May 8, 2013, 8:54 a.m. EDT 2 Replies

Abeer Al-Ghamdi
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Hello,,

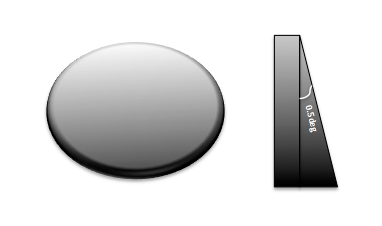

How can we design a glass wedge layer tend a 0,5 degree angle from a thin layer in the mirror cylindrical at 3D space ?
2 Replies Last Post May 9, 2013, 7:46 p.m. EDT
Ivar KJELBERG COMSOL Multiphysics(r) fan, retired, former "Senior Expert" at CSEM SA (CH)
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 1 decade ago May 8, 2013, 10:57 a.m. EDT
Hi

I would propose: draw a 3D cylinder, add a box, rotate it by 0.5° and place it accordingly to overlap part of the cylinder then take the difference cylinder - box you will then have your wedge

--
Good luck
Ivar
Hi I would propose: draw a 3D cylinder, add a box, rotate it by 0.5° and place it accordingly to overlap part of the cylinder then take the difference cylinder - box you will then have your wedge -- Good luck Ivar
Abeer Al-Ghamdi
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 1 decade ago May 9, 2013, 7:46 p.m. EDT
Thank you very much,,,
Thank you very much,,,
