How to specify the phase shift in electric currents (ec)

Posted Aug 8, 2013, 9:19 a.m. EDT Low-Frequency Electromagnetics 3 Replies

Jinxiang Xi
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Hi,

I try to reproduce the 3-phase cable simulation as shown in
www.youtube.com/watch?v=ZCLcbSQB1-Q

I used the electric currents physics and time-dependent. How to specify the phase shift among the three rods? Using "Time-dependent" don't allow me to specify the frequency. I attached the mph files here also. Any suggestion? Thanks in advance.

Jinxiang

Attachments:

3 Replies Last Post Jul 23, 2015, 5:56 p.m. EDT
Edgar J. Kaiser Certified Consultant
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 1 decade ago Aug 8, 2013, 9:53 a.m. EDT
Jinxiang,

you can apply a complex value to the current. This allows to introduce phase shift.

Cheers
Edgar

--
Edgar J. Kaiser
emPhys Physical Technology
Jinxiang, you can apply a complex value to the current. This allows to introduce phase shift. Cheers Edgar -- Edgar J. Kaiser emPhys Physical Technology
Ralf Tschiesche
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 1 decade ago Aug 9, 2013, 9:26 a.m. EDT
Hi!

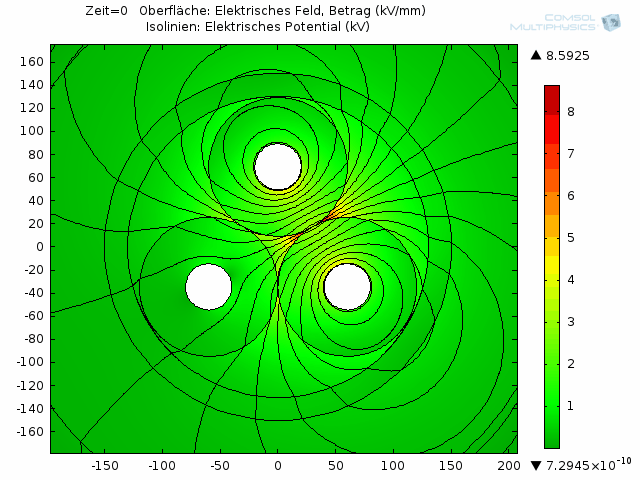

This was an electric field simulation, so better use ES, if you have materials with different epsilon.
In transient case you can simply add your phase shift to each potential definition.
Ralf
Hi! This was an electric field simulation, so better use ES, if you have materials with different epsilon. In transient case you can simply add your phase shift to each potential definition. Ralf
Ivan Condori
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 9 years ago Jul 23, 2015, 5:56 p.m. EDT
can you tell me how you can accomplish that, I'm also trying to find out
can you tell me how you can accomplish that, I'm also trying to find out
