Problem meshing thin material (RF MEMS SWITCH)

Posted Oct 17, 2013, 6:46 a.m. EDT MEMS & Nanotechnology, MEMS & Piezoelectric Devices 1 Reply

Norshahida Saba
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Hello,

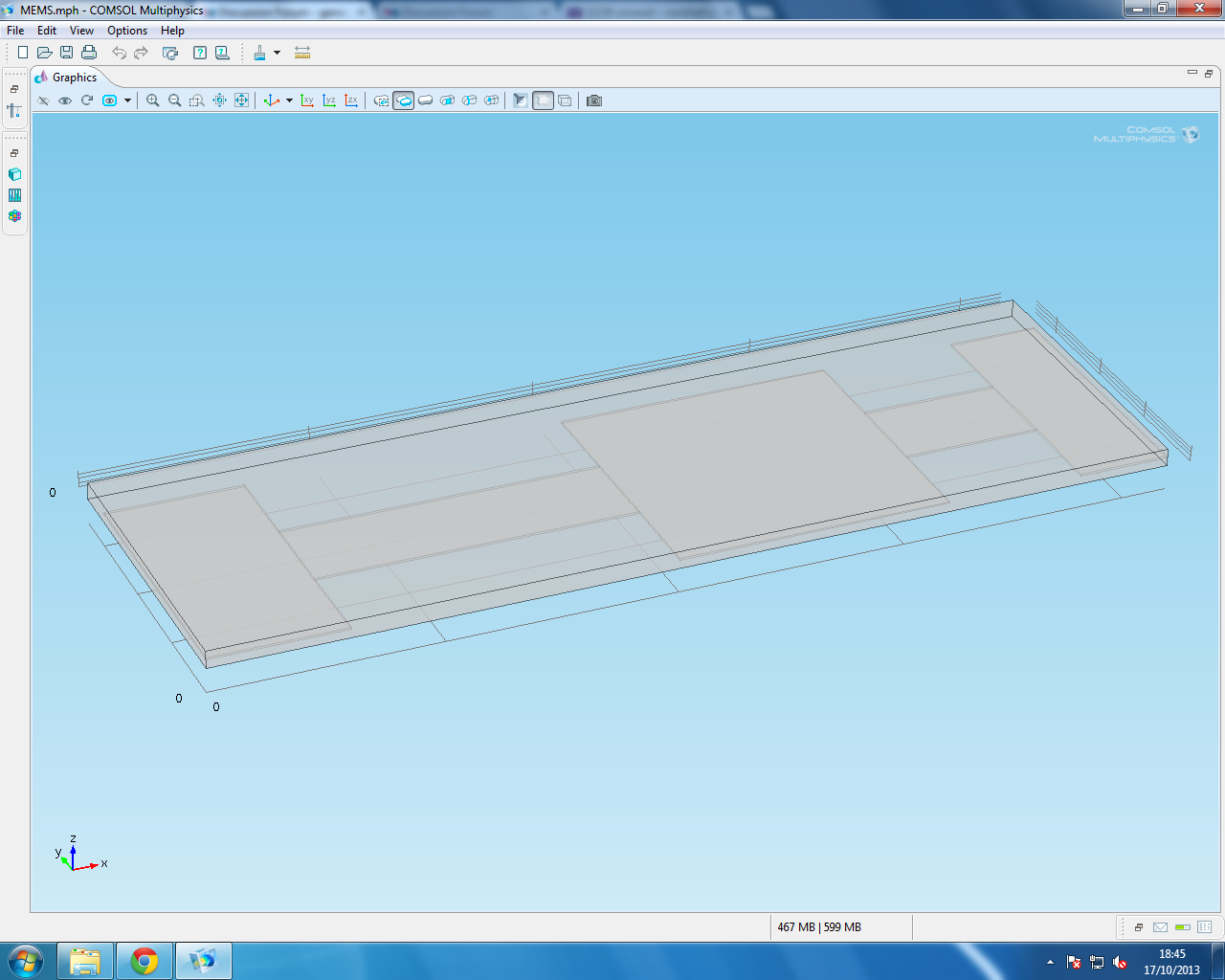

I'm having a problem with inverted mesh while using free tetrahedral-extremely fine. This error occur when the thickness is 0.4um. But if I change the thickness to 1um it runs finely. I try to do mapped but it doesn't work. Here the picture of my structure. Please advise...

Attachments:

1 Reply Last Post Oct 21, 2013, 4:40 a.m. EDT
Lasse Murtomäki
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 1 decade ago Oct 21, 2013, 4:40 a.m. EDT

Hello,

I'm having a problem with inverted mesh while using free tetrahedral-extremely fine. This error occur when the thickness is 0.4um. But if I change the thickness to 1um it runs finely. I try to do mapped but it doesn't work. Here the picture of my structure. Please advise...


Have you tried swept mesh?

Lasse
[QUOTE] Hello, I'm having a problem with inverted mesh while using free tetrahedral-extremely fine. This error occur when the thickness is 0.4um. But if I change the thickness to 1um it runs finely. I try to do mapped but it doesn't work. Here the picture of my structure. Please advise... [/QUOTE] Have you tried swept mesh? Lasse
